Overview
The EXFIL Ballistic features a hybrid composite shell for increased strength and a unique geometry for optimal fit. An innovative, boltless CAM FIT™ retention quickly adjusts to individual head shapes, providing comfort and stability. A Zorbium® foam liner protects against impact and allows for an overhead communications headband. Customizable fit is achieved through a set of moveable comfort pads. A lanyard-compatible Wilcox® shroud* secures any standard NVG mount.

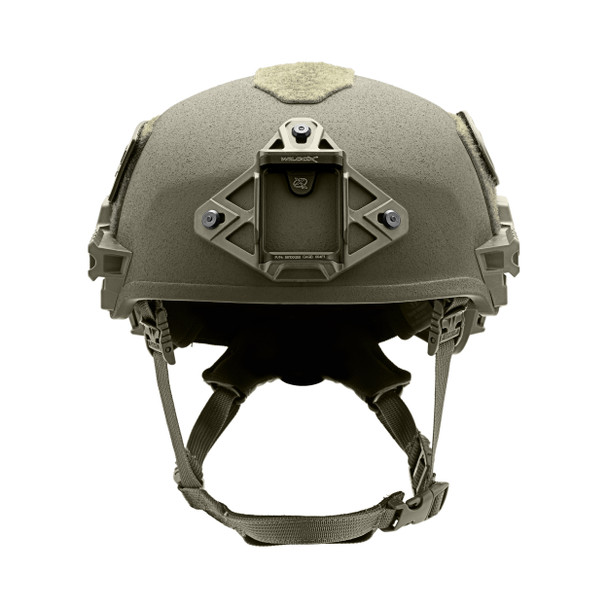

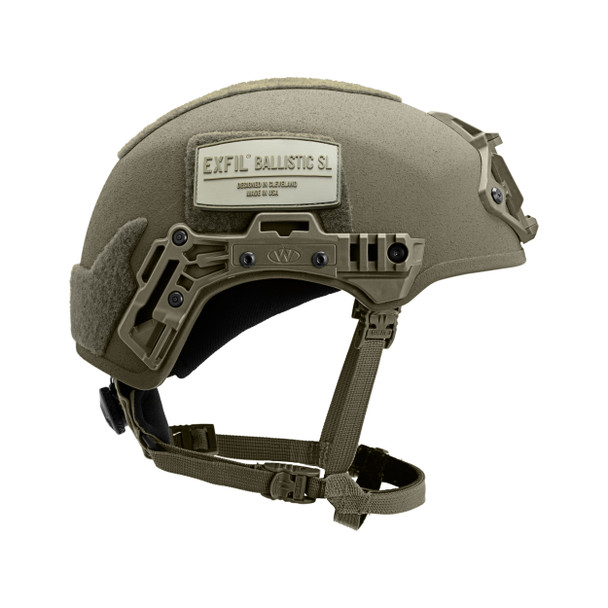

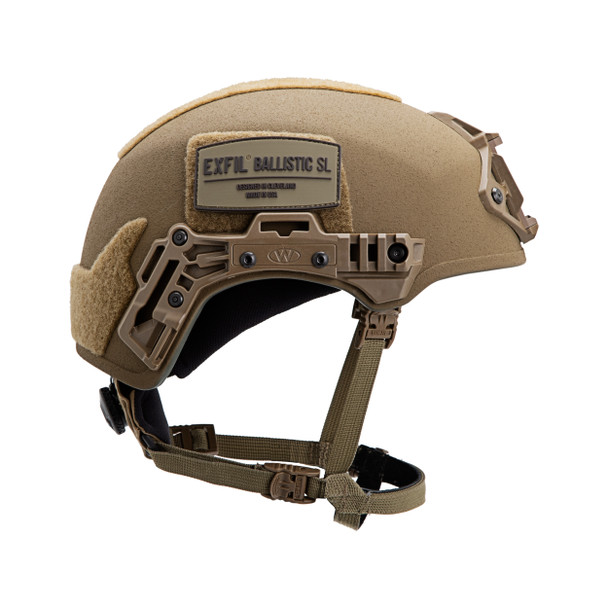

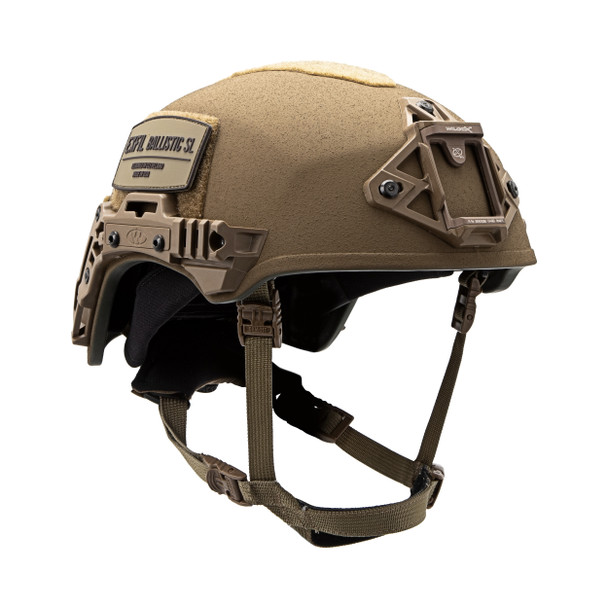

The EXFIL Ballistic SL features a new lightweight composite shell providing a 15% weight reduction over the original EXFIL® Ballistic while offering the same unique EXFIL® shell geometry for an optimal fit. The new EXFIL® Rail 3.0 accessory mounting system, which is 25% lighter than the previous EXFIL®Rail 2.0 system, is compatible with standard EXFIL® accessories and was designed in conjunction with the new EXFIL® Ballistic Visor. A new SL Shroud* from Wilcox® provides a 35% reduction in weight from the previous Wilcox® W Shroud while maintaining full NVG mounting capabilities and lanyard compatibility. The EXFIL® Ballistic SL utilizes the innovative, field-proven, boltless CAM FIT™ Retention System to quickly adjust to individual head shapes and a Zorbium® foam liner to provide customizable comfort while protecting against blunt impact.
Specifications:
- WEIGHT: 2.6 lbs for size 1, 2.75 lbs, for size 2. Complete system weight includes helmet shell, shroud, accessory rails, impact liner, and retention system.
- PERFORMANCE: Ballistic Performance: NIJ Level 3A (according to NIJ STD 0106.01 / 0108.01). Fragment Performance: 17gr V50 ≥ 2400 ft/sec. Backface Deformation: 9mm (1400fps) BFD: <25mm all locations (front/back/crown/sides) exposed to high temp/humidity, solar, low temperature, altitude, seawater, and salt fog. Blunt Impact Performance: Exceeds current ACH Blunt Impact Protection requirements (per AR/PD 10-02).
- LINER SYSTEM: Zorbium® Foam Liner with 16 customizable comfort pads in two thicknesses.
- RETENTION SYSTEM: Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- SHROUD: Lanyard compatible 3-hole Wilcox® W shroud.

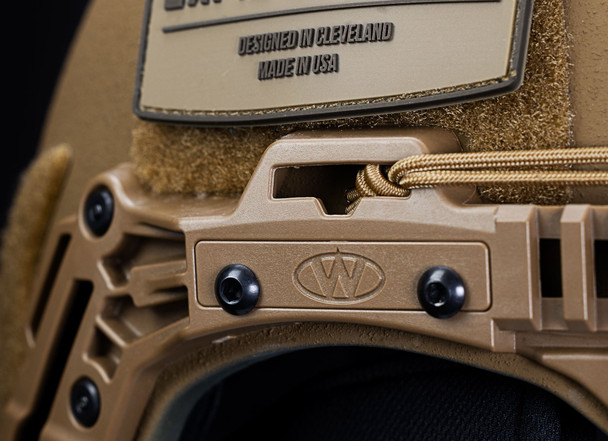

- ACCESSORY RAIL SYSTEM: 3.0
EXFIL Ballistic SL Lightweight
- Proprietary Hybrid Composite Shell
- WEIGHT: 2.22 lbs for size 1, 2.31 lbs for size 2. Complete system weight includes helmet shell, shroud, accessory rails, impact liner, and retention system.
- PERFORMANCE: Ballistic Performance: NIJ Level IIIA (according to NIJ STD 0106.01/0108.01). Fragment Performance: 17gr V50 ≥ 2400 ft/sec. Backface Deformation: 9mm FMJ RN @ 1195 ft/s. BFD: <25.4 mm all locations (front/back/crown/sides) exposed to high temp/humidity, solar, low temperature, altitude, seawater, and salt fog. Blunt Impact Performance: Exceeds current ACH Blunt Impact Protection requirements (per AR/PD10-02).
- LINER SYSTEM: Zorbium® Foam Liner with 16 customizable comfort pads in two thicknesses.
- RETENTION SYSTEM: Boltless CAM FIT™ Retention System featuring a BOA® Fit System for optimized stability and fit.
- SHROUD: Lanyard compatible 3-hole Wilcox® shroud.
- ACCESSORY RAIL SYSTEM: 3.0
Size 1 (M-L)
- Head Circumference (in): 20.5 – 23.5
- Head Circumference (cm): 52 – 60
- Hat Size: 6 5/8 – 7 1/2
Size 2 (XL)
- Head Circumference (in):23 – 24.75
- Head Circumference (cm): 58 – 63
- Hat Size: 7 3/8 – 7 7/8
