Overview

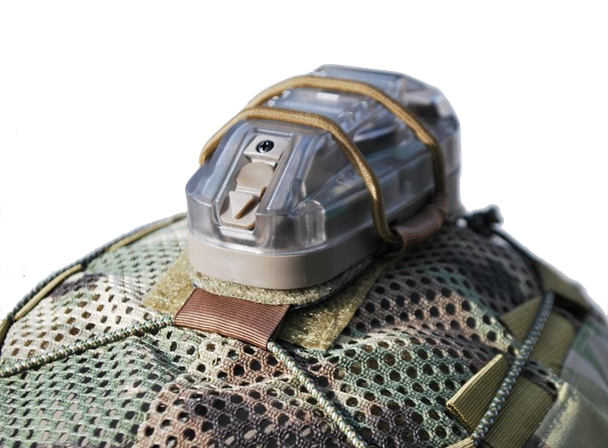

Core Survival HEL-STAR Gen III 620 Series Multi-Function Marker Light, Helmet Mount
The Core Survival HEL-STAR 620 Series is a compact helmet-mounted marker light designed for military, airborne, MFF, tactical, and identification applications. It combines visible and infrared signaling functions in a single housing, with multiple factory-programmed output configurations available in this listing.
Each HEL-STAR 620 provides four selectable functions arranged across two operating modes. Unlike the 640 Series, the 620 uses a locking clip at the front of the housing to restrict access between the two function groups. This allows the operator to select a preferred mode set while reducing the possibility of unintentionally switching between visible and infrared functions.
Available configurations combine green, white, and infrared outputs in steady, flashing, dim, bright, and combined modes. The exact A1, A2, B1, and B2 functions depend on the selected SKU.
Visible and Infrared Signaling
The HEL-STAR 620 Series supports both overt visible identification and infrared signaling for use with compatible night-vision equipment. Different factory configurations provide different combinations of color, intensity, and flash behavior.
The output pattern is fixed by the selected configuration, so buyers should verify all four functions before ordering.
620 Series Locking Mode Control
The distinguishing feature of the HEL-STAR 620 is its front locking clip. The clip restricts access between the two operating modes and requires deliberate repositioning before the alternate function group can be selected.
This differs from the HEL-STAR 640 Series, which uses a detented mode switch intended for faster switching between Mode A and Mode B in the field.
Helmet-Mounted Construction
The HEL-STAR platform is designed to provide multi-directional identification from a compact housing mounted close to the helmet. Separate mode and function controls can be identified by touch, allowing the light to be operated without relying on direct visual confirmation of the switches.
Available Function Configurations
Abbreviations: GR = Green, WH = White, IR = Infrared, FL = Flash.
| SKU | A1 | A2 | B1 | B2 |
|---|---|---|---|---|
| CS-HS6-620-1 | GR (Steady/Dim) | GR (Steady/Dim) + WH (Flash) | IR (Flash/Dim) | IR (Flash/Bright) |
| CS-HS6-620-2 | GR (Steady) | GR (Steady) + WH (Flash) | IR (Flash) | IR (Flash/Bright) |
| CS-HS6-620-3 | GR (Steady/Dim) | GR (Steady/Dim) + WH (Flash) | IR (Flash/Dim) | IR (Flash/Bright+) |
| CS-HS6-620-4 | WH (Flash) | GR (Steady) | IR (Flash) | IR (Flash/Bright) |
Key Features
- Core Survival HEL-STAR Gen III 620 Series helmet marker light
- Four selectable functions across two operating modes
- Visible and infrared signaling configurations
- Green, white, and IR outputs depending on selected SKU
- Steady, flash, dim, bright, and combined functions depending on configuration
- Front locking clip for controlled Mode A / Mode B selection
- Separate function and power control
- Designed for tactile operation without direct visual reference
- Compact helmet-mounted signaling platform
