Heckler & Koch

HK GLM 40mm Launcher

Log in for special member pricing. Use "Request Quote" for: RFQs, Bulk discounts, Out-of-stock items, Regulated products, Tax-exempt sales.

Please use separate carts to keep free shipping offers.

Air freight orders: Submit by 12 PM PST for same-day shipping.

SKU:
HKGLM
Weight:
5.00 LBS
LE SALES ONLY

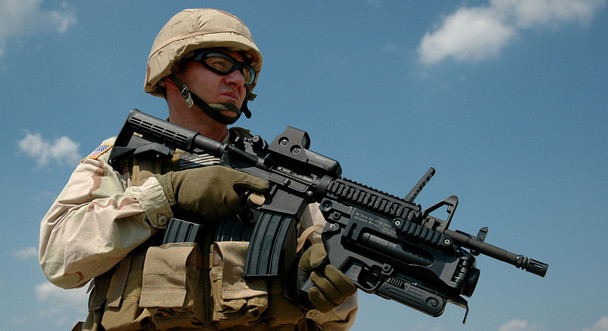

  • The HK GLM (Grenade Launcher Module) is a 40x46mm system that can be used with either lethal or less-lethal munitions for Military or Law Enforcement use.
The HK GLM is a light weight stand-alone or host weapon mounted 40x46mm single shot grenade launcher that is side breach opening/ loading, utilizing a double-action trigger with ambidextrous safety and controls. The system incorporates a collapsing/extendable and removable stock as well as other accessories.
It is capable of fifiring multiple use munitions/projectiles to include High Explosive “HE” rounds to an effective range of 350M, illumination rounds for signaling and visibility, Smoke for screening and obscuring, CS, and various less lethal munitions for crowd and riot control at closer ranges.
The GLM can be used in a Stand-Alone Mode (SAM) or it can be host mounted to another riflfle system via optional mounting solutions. The common mounting solutions are for the HK416, HK417, M16A2,
and M4.
Background:
In the 1970s Heckler & Koch “HK” developed and produced the 40x46mm Steel stand-alone HK69 grenade launcher which was similar in performance to the US Military M79 grenade launcher at the time.
HK made updates to our existing grenade launchers through internal product improvement efforts which became the HK Grenade Launcher Module (GLM) 40x46mm based on our previous HK 40x46mm systems. The HK GLM was offered to the US Army in 2005 and tested with limited production in 2006 as the XM320. After successful testing the system was approved and type-classifified and procured as the M320/M320A1 (for use on the M16A2 or M4 as well as a stand-alone system) by the US Army in 2008. HK has provided over 40,000 HK GLM type systems to the USA for Military or Law Enforcement use.
HK weapon systems are manufactured with an ISO-9001 quality and test process. HK weapons are additionally tested to the NATO AC/225 requirements.
  • The HK GLM (Grenade Launcher Module) is a 40x46mm system that can be used with either lethal or less-lethal munitions for Military or Law Enforcement use.
The HK GLM is a light weight stand-alone or host weapon mounted 40x46mm single shot grenade launcher that is side breach opening/ loading, utilizing a double-action trigger with ambidextrous safety and controls. The system incorporates a collapsing/extendable and removable stock as well as other accessories.
It is capable of fifiring multiple use munitions/projectiles to include High Explosive “HE” rounds to an effective range of 350M, illumination rounds for signaling and visibility, Smoke for screening and obscuring, CS, and various less lethal munitions for crowd and riot control at closer ranges.
The GLM can be used in a Stand-Alone Mode (SAM) or it can be host mounted to another riflfle system via optional mounting solutions. The common mounting solutions are for the HK416, HK417, M16A2,
and M4.
Background:
In the 1970s Heckler & Koch “HK” developed and produced the 40x46mm Steel stand-alone HK69 grenade launcher which was similar in performance to the US Military M79 grenade launcher at the time.
HK made updates to our existing grenade launchers through internal product improvement efforts which became the HK Grenade Launcher Module (GLM) 40x46mm based on our previous HK 40x46mm systems. The HK GLM was offered to the US Army in 2005 and tested with limited production in 2006 as the XM320. After successful testing the system was approved and type-classifified and procured as the M320/M320A1 (for use on the M16A2 or M4 as well as a stand-alone system) by the US Army in 2008. HK has provided over 40,000 HK GLM type systems to the USA for Military or Law Enforcement use.
HK weapon systems are manufactured with an ISO-9001 quality and test process. HK weapons are additionally tested to the NATO AC/225 requirements.
  • The HK GLM (Grenade Launcher Module) is a 40x46mm system that can be used with either lethal or less-lethal munitions for Military or Law Enforcement use.
The HK GLM is a light weight stand-alone or host weapon mounted 40x46mm single shot grenade launcher that is side breach opening/ loading, utilizing a double-action trigger with ambidextrous safety and controls. The system incorporates a collapsing/extendable and removable stock as well as other accessories.
It is capable of fifiring multiple use munitions/projectiles to include High Explosive “HE” rounds to an effective range of 350M, illumination rounds for signaling and visibility, Smoke for screening and obscuring, CS, and various less lethal munitions for crowd and riot control at closer ranges.
The GLM can be used in a Stand-Alone Mode (SAM) or it can be host mounted to another riflfle system via optional mounting solutions. The common mounting solutions are for the HK416, HK417, M16A2,
and M4.
Background:
In the 1970s Heckler & Koch “HK” developed and produced the 40x46mm Steel stand-alone HK69 grenade launcher which was similar in performance to the US Military M79 grenade launcher at the time.
HK made updates to our existing grenade launchers through internal product improvement efforts which became the HK Grenade Launcher Module (GLM) 40x46mm based on our previous HK 40x46mm systems. The HK GLM was offered to the US Army in 2005 and tested with limited production in 2006 as the XM320. After successful testing the system was approved and type-classifified and procured as the M320/M320A1 (for use on the M16A2 or M4 as well as a stand-alone system) by the US Army in 2008. HK has provided over 40,000 HK GLM type systems to the USA for Military or Law Enforcement use.
HK weapon systems are manufactured with an ISO-9001 quality and test process. HK weapons are additionally tested to the NATO AC/225 requirements.
  • The HK GLM (Grenade Launcher Module) is a 40x46mm system that can be used with either lethal or less-lethal munitions for Military or Law Enforcement use.
The HK GLM is a light weight stand-alone or host weapon mounted 40x46mm single shot grenade launcher that is side breach opening/ loading, utilizing a double-action trigger with ambidextrous safety and controls. The system incorporates a collapsing/extendable and removable stock as well as other accessories.
It is capable of fifiring multiple use munitions/projectiles to include High Explosive “HE” rounds to an effective range of 350M, illumination rounds for signaling and visibility, Smoke for screening and obscuring, CS, and various less lethal munitions for crowd and riot control at closer ranges.
The GLM can be used in a Stand-Alone Mode (SAM) or it can be host mounted to another riflfle system via optional mounting solutions. The common mounting solutions are for the HK416, HK417, M16A2,
and M4.
Background:
In the 1970s Heckler & Koch “HK” developed and produced the 40x46mm Steel stand-alone HK69 grenade launcher which was similar in performance to the US Military M79 grenade launcher at the time.
HK made updates to our existing grenade launchers through internal product improvement efforts which became the HK Grenade Launcher Module (GLM) 40x46mm based on our previous HK 40x46mm systems. The HK GLM was offered to the US Army in 2005 and tested with limited production in 2006 as the XM320. After successful testing the system was approved and type-classifified and procured as the M320/M320A1 (for use on the M16A2 or M4 as well as a stand-alone system) by the US Army in 2008. HK has provided over 40,000 HK GLM type systems to the USA for Military or Law Enforcement use.
HK weapon systems are manufactured with an ISO-9001 quality and test process. HK weapons are additionally tested to the NATO AC/225 requirements.
LE Agency Sales Only eMail or Call For Pricing
Bitcoin Icon We accept Bitcoin. Click to see how.

Description

The GLM 40 mm add-on grenade launcher (LV) has the same function, characteristics and handling as the AG36. Developed for use on the HK416/HK417, it can also be mounted on M4/M16 or C7/C8 type assault rifles by means of a special adapter. As a scalable system, through the use of optional accessory components the GLM can also be carried as a stand-alone weapon (SAM GLM) independently of any primary weapon.

Features:

The HK GLM is light weight at approximately 2.8-pound receiver only weight, 3.75 pounds without the stock, and 5.5 pounds (with the stock, ladder sight, vertical grip, and HK416 weapon mount). The GLM is very compact with a collapsed stock length of approximately 14.75 inches reducing the fatigue and volume space footprint on the user while enabling longer distance precision.

Using a side breach opening and loading operation, the HK GLM can load and fifire longer munition types when compared to an M203 or rotary cylinder type of operation.

With a double action trigger system there is no need to open or re-cycle the breach of the weapon in order to re-cock the system should the munition’s primer not fifire. The user can simply press the trigger again.

The HK GLM incorporates ambidextrous controls and operation to include an ambidextrous safety selector (similar to the M4 and MP5 location), an ambidextrous breach opening button located inside the trigger guard with a push up design.

The stock is extendable/retractable as well as removable in order to minimize space on the user as well as when the system is utilized in and around vehicles or buildings. With the stock extended it provides a stable marksmanship base for accurate longer distance shots.

There are multiple ambidextrous sling hook attachment points located on the HK GLM. the rear center of the stock, rear end upper left and right side of receiver, the front muzzle upper area left and right on
the receiver.

The Picatinny rail on the bottom front offers an additional location
for accessories such as fifinger guards, vertical grips, lights, sling attachments, etc....
The HK GLM can be belt or vest holstered like the stand-alone GLM-M320 with the use of aftermarket company products such
as S and S Precision https://www.sandsprecision.com/grenade- launcher-holster.html, Blue Force Gear https://www.blueforcegear. com/SpecSheets/M-HOLSTER-M320-RH.pdf, and S.O. Tech https:// sotechtactical.com/ Grenade Launcher holsters and accessories. Note that the use of some accessory mounting solutions, attachments, and confifigurations may not allow the weapon to be holstered.

Sight Options: Standard 50-350M side-mounted folding ladder sights are preferred for High Explosive munitions and longer distance ranges. Sighting increments are graduated. The side mounted sights can be reversed and used on either side of the weapon. The also allows for the use of grenade/laser optics to be used while a back-up ladder sight is mounted. After market companies also make additional Picatinny mounting solutions (to include inline Picatinny mounting solutions that replace host weapon mounts), and various accessories. Please note that HK does not manufacture grenade launcher optics/lasers.

Accessories & Mounting: Folding Vertical Grips. Muzzle cap, Stocks, Slings, Mounting solutions, Cleaning kits.


WARNING This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. You must be 18+ years old to shop and or purchase on our website and 21+ to purchase Ammunition/Firearms. Check local laws before ordering as you certify you are of legal age and satisfy all federal, state, and local legal/regulatory requirements. There are NO returns or exchanges on armor, firearms, ammunition, PPE equipment. Ammo ships UPS ground to the lower 48 states.
We reserve the right to fix any critical errors.

. .
View AllClose

Additional Information

Caliber:
40mm
