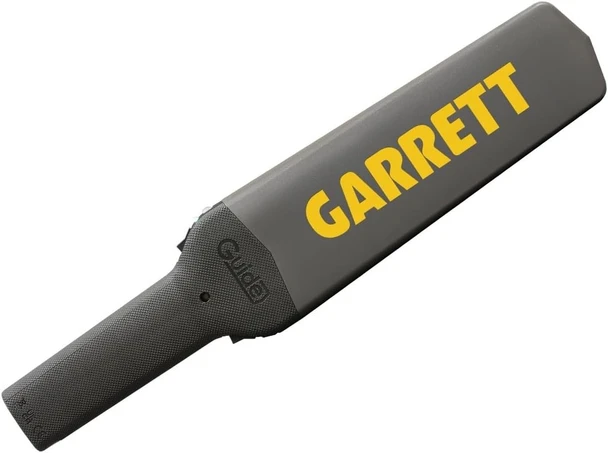

Garrett Guide Hand-Held Metal Detector

Discover the advanced features of our Hand-Held Metal Detector, designed for optimal security screening with elegance and efficiency. This sleek device offers maximal effect with minimal effort, featuring one-button activation and three-button control for user-friendly operation. Built to military-spec drop test standards, it boasts IP 65 waterproofing and a modern microtextured dimpled rubber grip. With seven selectable sensitivities, it detects a wide range of threats, from large objects to fine details, ensuring high-security environments such as prisons and clean-rooms are safeguarded. Instantly address interference and enjoy eco-friendly performance with rechargeable lithium-ion batteries, providing over 125 hours of operation on a single charge. Its 8-inch scan length and self-calibrating design guarantee fast and consistent scans, making it the perfect choice for comprehensive security checks.

Guide is feature-dense but low on complexity, designed to show the way, not get in the way. Security staff trained on the Super Scanner V will be able port their experience directly to the Guide while enjoying additional quality of life features, while those new to metal detection will be able to get up and running with Guide in only few minutes more.

Beyond that, Guide has been thoughtfully designed to serve the needs of security managers, with built-in rechargeability and a compact charging base accessory to charge and store more units in less space

Specifications:

• Detection Frequency: ~55 kHz
• Audio Frequency: ~2kHz
• Dimensions: Length: 16″ [406.4mm]
• Width: 3.375″ [85.7mm]
• Thickness: 1.125” [28.6mm]
• Shipping Dimensions: Length: 21″ [533.4mm]
• Width: 4″ [101.6mm]
• Thickness: 2″ [50.8]
• Weight: 1 lb [0.5Kg]
• Voltage: 3.8 Vdc
• Current: 15 mA typical
• Battery: Lithium Ion 3.8V, 2.5Ahr
• Operating Temperature: -4°F (-20°C) to 140°F (60°C)
• Humidity: 100%
• Environmental: IP65 rating

Features:

• Meet and Beat: Designed to do anything the iconic Super Scanner V can do, or to do it better.
• LED Indicators: Separate green and red Ready and Alarm LEDs indicate the scanning state of Guide, while soft white LEDs in the base display Status/Settings information.
• 4-Level Charge Indication: Status/Settings LEDs display charge level from 0-25%, 26-50%, 51-75%, and 76-100%.
• Audio or Vibrate Alarm: Rocker switch allows choice of audible alarm tone or haptic vibration alarms

Highlights:

• Maximal Effect, Minimal Effort: Takes the hallmark simplicity of Garrett handhelds to the next level with one-button activation, three-button full control. More features and more accessibility than ever before.
• Refined Construction: Features a sleek and modern aesthetic with IP 65 waterproofing and a microtextured dimpled rubber grip, all constructed to military spec drop test requirements.

HIGH SECURITY DETECTION.

• 7 Selectable Sensitivities: Lets you find your targets how you want, from focusing on large threats at low sensitivities to prison and clean-room level security at higher levels.
• Address Interference Instantly: Eliminates electromagnetic interference from other handhelds by pressing the Offset Button and negates the impact of troublesome rebar with the Reduced Sensitivity Switch.

RECHARGEABLE AND LONG-LASTING.

• Eliminate Waste: Comes with rechargeable lithium-ion batteries and a 3- foot USB-A to USB-C charging cable to reduce environmental waste and save on repeated battery purchases.
• Powerful Batteries, More Uptime: Operates for more than 125 hours on a single charge and fully charges in only 5 hours.

FAST AND CONSISTENT SCANS

• Large Scanning Surface: 8-inch scan length means better screening coverage, reduced operator fatigue, and simplified scanning patterns for rapid security checks.
• Self-Calibrating Design: Eliminates manual sensitivity adjustments, ensuring consistent and reliable performance.
