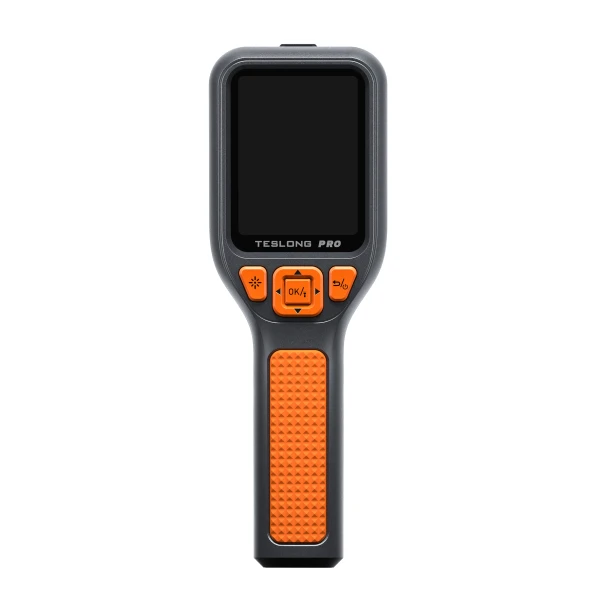

Teslong M2 PRO Thermal Imaging Camera

The Teslong TTM260 and TTM120S Thermal Imaging Cameras are compact and portable devices for visualizing temperatures ranging from -4°F to 752°F. These devices detect thermal, or infrared radiation, and translate it into color, helping you see temperature contrast even in poor lighting and without contact. The TTM260 & TTM120S not only assist with locating hot/cold areas, but also have a built-in (Class II) laser rangefinder to measure the distance between the device and any target. Capture photos with a short-press to the trigger button and videos with a long-press. They are perfect for locating water leaks, gaps in home insulation, overheating electrical components, or troubleshooting automotive problems.

Both of these thermal imaging cameras are essential tools for professionals and enthusiasts alike, combining advanced thermal imaging technology with user-friendly design to deliver precise temperature measurements and detailed thermal images. Whether you're conducting equipment inspections, troubleshooting issues, or performing preventive maintenance tasks, our thermal cameras offer unmatched versatility and performance to meet your diverse needs.

A thermal camera for multiple jobs

• 256×192 Sensor with 25 Hz Refresh Rate
• Temperature Measurement Range: -4°F to 752°F (-20°C to 400°C)
• 2600 mAh Rechargeable Lithium Battery with APO (Auto Power Off)
• 3.2-inch Screen with 240×320 Resolution
• Ideal for Building Inspectors & Equipment Maintenance
• Bright, Integrated Work Light with 2 LEDs
• 5 Photo Modes (M2 Only)
• 8 GB Built-in Memory
• Durable & Versatile

Features

• VISUALIZE TEMPERATURES
  This thermal imaging camera is perfect for locating water leaks, gaps in home insulation, overheating electrical components, or troubleshooting automotive problems.
• Capture Photos & Videos
  Capture up to 8 GB of photos and videos to document problem areas and reference later.
• Measure Temperatures & Distances
  The Class II laser rangefinder can measure the distance between the device and any target.

Technical Specs

• Model Number: M2 PRO
• Infrared Sensor Resolution: 256×192
• Field of View: 42°–56°
• Pixel Size: 12 μm
• Spectral Range: 8–14 μm
• Thermal Sensitivity / NETD: <50 mK
• Image Frequency: 25 Hz
• Temperature Measurement Range: -4°F to 1022°F (-20°C to 550°C)
• Temperature Measurement Accuracy: ±2°C or ±2% of reading
• Operating Temperature Range: 14°F to 140°F (-10°C to 60°C)
• Storage Temperature Range: -40°F to 185°F (-40°C to 85°C)
• Visible Camera Megapixel: 720p
• Visible Camera FOV: 55°–83°
• Integrated Work Light: 2 Watt Cree LEDs
• Laser Class: Class II
• Laser Measurement Range: 1–40 meters
• Temperature Display
  • Center Point Temperature
  • Max. Temperature Tracking (Hot)
  • Min. Temperature Tracking (Cold)
• Display & Imaging
  • Color Palette: Iron / White Hot / Black Hot / Rainbow / Hottest / High Contrast / Glimmer / Lava
  • Image Mode (M2 Only): Thermal / Visible / Outline Fusion / Overlay Fusion / PIP / Fusion ADJ. / Offset ADJ.
  • Screen Type: 3.2-inch TFT LCD Screen
  • Screen Resolution: 240×320
• Power & Storage
  • Battery Capacity: 2600 mAh Rechargeable Lithium Battery (with APO – Auto Power Off)
  • Storage Capacity: 8 GB
• Connectivity & Protection
  • USB Port: USB Type-C
  • Waterproof Rating: IP54

What's in the package

• Thermal Imaging Camera
• USB-C Cable (USB Type-A to USB Type-C)
• User Manual
• Safety Warning Manual
• Wrist Strap
• Soft Carrying Case
• 3-Year Limited Manufacturer Warranty

Instructions and Manuals

• User Manual
• Safety Manual
