Overview

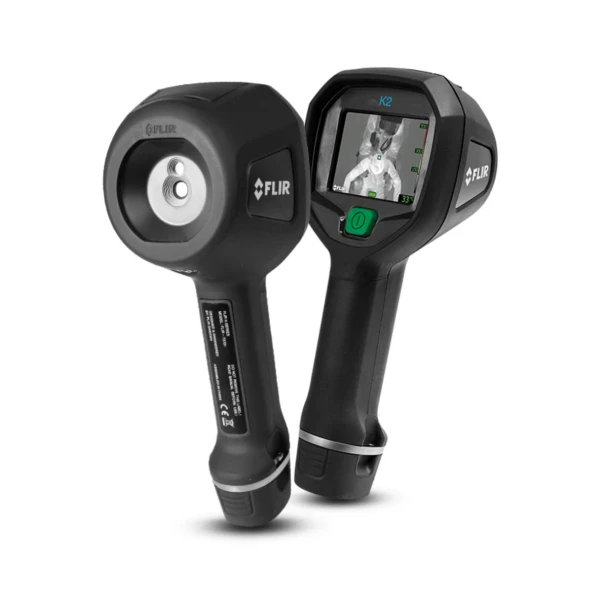

Flir is on a mission to make high quality thermal imaging cameras standard issue equipment for every member of a fire crew. The Flir K2 makes that possible by providing capability, ruggedness, and reliability at an affordable price. With features such as Multi-Spectral Dynamic Imaging (MSX®), easy-to-use buttons, and operability in temperatures up to 500°F, the K2 is a small investment that pays big dividends—saving lives, protecting property, and ensuring firefighter safety.
Rugged. Reliable. Life-saving
- Powerful Yet Affordable
- The K2 makes high-quality thermal imaging more accessible so more first responders can help save lives and protect property.
- Compact and Easy to Use
- This lightweight camera attaches easily to turnouts, and offers simplified, single-button controls that can be used with heavy gloves.
- Rugged and Reliable
- The K2 withstands a 2-meter drop onto concrete, is water resistant (IP67) and is fully operational up to 500°F (3 minutes).
Specifications
- Highlighted
- IR Resolution: 160 × 120 pixels
- Display: 3 in. LCD, 320 × 240 pixels, backlit
- Object Temperature Range: −20°C to 150°C (−4°F to 302°F); 0°C to 500°C (32°F to 932°F)
- Image Modes: Basic fire-fighting mode (default); Black-and-white fire-fighting mode; Fire mode; Search-and-rescue mode; Heat detection mode; Cold detection mode; Building analysis mode
- Camera Weight Incl Battery: 0.7 kg (1.54 lb.)
- Camera Size (L × W × H): 250 mm × 105 mm × 90 mm (9.8 in. × 4.1 in. × 3.5 in.)
- Imaging & Optical
- Built-in Digital Camera: 640 × 480 pixels
- Depth of Field: 0.1 m (0.33 ft.), infinity
- Detector Type: Focal plane array, uncooled microbolometer
- Digital Camera FOV: 73° × 61°, adapts to the IR lens
- f-number: 1.1
- Field of View (FOV): 47° × 35°
- Focal Length: 1.9 mm (0.075 in.)
- Focus: Fixed
- Image Frequency: 9 Hz
- Image Modes: Basic fire-fighting mode (default); Black-and-white fire-fighting mode; Fire mode; Search-and-rescue mode; Heat detection mode; Cold detection mode; Building analysis mode
- IR Resolution: 160 × 120 pixels
- Multi Spectral Dynamic Imaging (MSX): Yes
- Pitch: 12 μm
- Spatial Resolution (IFOV): 6.22 mrad
- Spectral Range: 7.5–13 μm
- Thermal Sensitivity/NETD: <100 mK @ 30°C (86°F)
- Environmental & Certifications
- Corrosion: ASTM B117, salt spray, 5% saline solution in 48 hours and 35°C
- Drop: 2 m (6.6 ft.)
- EMC: EN 61000-6-2:2005 (immunity); EN 61000-6-3:2011 (emission); FCC 47 CFR Part 15 B (emission)
- Encapsulation: IP 67 (IEC 60529)
- Humidity (Operating and Storage): IEC 60068-2-30, 24 hours, 95% relative humidity, 25–40°C (77–104°F), 2 cycles
- Magnetic Fields: EN 61 000-4-8, test level 5 for continuous field (severe industrial environment)
- Operating Temperature Range: −10°C to 55°C (14°F to 131°F); infinity 85°C (185°F): 15 minutes; 150°C (302°F): 10 minutes; 260°C (500°F): 3 minutes
- Relative Humidity: 95% relative humidity, 25–40°C (77–104°F), non-condensing
- Shock: 25 g (IEC 60068-2-27)
- Storage Temperature Range: −40°C to 70°C (−40°F to 158°F)
- Tripod Mounting: UNC 1/4"-20
- Vibration: 2 g (IEC 60068-2-6)
- Power
- Battery Capacity: 2.6 Ah at 20–25°C (68–77°F)
- Battery Operating Time: Approximately 4 hours at 25°C (77°F) ambient temperature and typical use
- Battery Type: Li Ion
- Battery Voltage: 3.6 V
- Battery Weight: 0.119 kg (0.26 lb.)
- Charging System: Battery is charged inside the camera or in a dedicated charger
- Charging Temperature: 0–45°C (32–113°F)
- Charging Time: 2.5 h to 90% capacity, charging status indicated by LEDs
- Power Management: Automatic shutdown and sleep mode
- Safety [power supply]: CE/EN/UL/CSA/PSE 60950-1
- Start Up Time: 30 seconds
- Start-up Time from Sleep Mode: 10 seconds
- Measurement & Analysis
- Accuracy: ±4°C (±7.2°F) or ±4% for ambient temperatures of 10–35°C (50–95°F)
- Auto Range: Auto, non-selectable
- Automatic Hot Detection: Heat detection mode (the hottest 20% of the scene is colorized)
- Camera Size (L × W × H): 250 mm × 105 mm × 90 mm (9.8 in. × 4.1 in. × 3.5 in.)
- Camera Weight Incl Battery: 0.7 kg (1.54 lb.)
- Isotherm: Yes
- Object Temperature Range: −20°C to 150°C (−4°F to 302°F); 0°C to 500°C (32°F to 932°F)
- Spot Meter: 1.0
- General
- Compatible with FLIR Software: FLIR Tools®
- Material: PPSU Silicon rubber Aluminium, cast Flame-resistant magnesium alloy
- Packaging Size: 323 × 325 × 110 mm (12.7 × 12.8 × 4.3 in.)
- User Interface
- Display: 3 in. LCD, 320 × 240 pixels, backlit
- Communication & Data Storage
- Image Storage: NA
- Image Storage Capacity: NA
- Image Storage Mode: NA
- Interface: Update from PC devices
- USB: USB Micro-B
