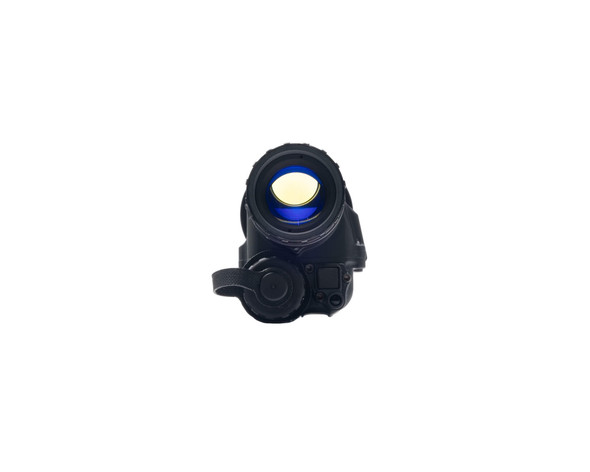

Pixels on Target VooDoo-S Short/Medium Range Monocular
Register/Log-In to view special pricing if available. Use Request Quote Button for RFQs, Bulk Discounts, Out-of-Stock, Regulated Products to Restricted States, or Tax-Exempt Sales.
Checkout does not allow to mix free shipping products with other Items, so checkout in separate carts or use the REQUEST QUOTE or QUOTE CART button in your shopping cart for free shipping consideration or special rates.
AIR Freight orders must be in by 12:PM PST to ship the same day.
- SKU:
- No skus
- Weight:
- 0.60 LBS
Description
The VooDoo-S is the next generation of thermal imaging system. We’ve kept what you require, improved what you asked for, and added what you’ve always desired. Feature rich, yet easy to use all under 10 oz.
Applications
- Sharpest image on the market for observation and search & rescue operations
- Weapons mountable with QD/Flip-to-Side Wilcox Mount
- Helmet mounted using Wilcox Bridge Mount (Monocular or Binocular)
Features
- VooDoo-S provides accuracy to <0.5 MOA at 100 yards. To further demonstrate VooDoo-S' accuracy, we put 5 rounds of 5.56 through a single 5.56 shell cases to simulated a thermal target @ 25 yards.
- VooDoo-S is built tough to withstand any small arms calibers. We tested without failure or bullet impact shift, 500 rounds of 7.62 x 51 NATO through the SCAR-17 Heavy.
- VooDoo-S has advanced features to include integrated Artifical Intelligence and Machine Learning that no other optic of its size, weight and power offers on the world market.
- VooDoo-S is the first micro thermal optic to offer such power and connectivity for our modern warfighters. The ability to load mission specific profiles, integrated communications via secured links and friend or foe designators reducing Blue-on-Blue Safety issues.
Specifications
- SENSOR 640 X 480 MICRO BOLOMETER
- PITCH 12 MICRON
- SENSITIVITY < 50 mK
- DIGITAL ZOOM 0.5x / 1x / 2x / 4x
- NUC CUSTOMIZED SOLUTION
- MOA < 0.5
- DAY TIME OPTIC COMPATIBILITY UP to 8x
- RETICLE TYPES STANDARD or CUSTOM
- POLARITY MODES WHITE HOT / BLACK HOT / WHITE EDGE DETECT / BLACK EDGE DETECT / DYNAMIC
- DIGITAL MAGNETIC COMPASS YES
- OLED TYPE DIGITAL MONOCHROME
- RESOLUTION 640 X 480
- REFRESH RATE 60 Hz
- EYE RELIEF 23mm
- ADJUSTABLE DIOPTER +/- 2
- STARTUP TIME < 3 SEC
- BATTERY TYPE 1 X CR123 (OPTIONAL REMOTE RAIL BATTERY PACK or AC/DC POWER CABLE)
- BATTERY RUNTIME < 3 HRS
- WEIGHT < 10 oz
- ENVIRONMENTAL MIL-STD-810G
- MOUNT WILCOX SHOE WITH QD/FLIP-TO-SIDE MOUNT
