Noisefighters Panobridge M1 | 1.9 oz Metal Night Vision Bridge offering Adjustable Field of View

(No reviews yet) Write a Review

Register/Log-In to view special pricing if available. Use Request Quote Button for RFQs, Bulk Discounts, Out-of-Stock, Regulated Products to Restricted States, or Tax-Exempt Sales.



Checkout does not allow to mix free shipping products with other Items, so checkout in separate carts or use the REQUEST QUOTE or QUOTE CART button in your shopping cart for free shipping consideration or special rates.


AIR Freight orders must be in by 12:PM PST to ship the same day.

SKU:
PBM1-PANOBRIDGEM1
MPN:
PBM1
Availability:
In Stock Ready To Ship
Weight:
0.20 LBS
On Sale
  • Noisefighters Panobridge M1 | 1.9 oz Metal Night Vision Bridge offering Adjustable Field of View
  • Noisefighters Panobridge M1 | 1.9 oz Metal Night Vision Bridge offering Adjustable Field of View
  • Noisefighters Panobridge M1 | 1.9 oz Metal Night Vision Bridge offering Adjustable Field of View
  • Noisefighters Panobridge M1 | 1.9 oz Metal Night Vision Bridge offering Adjustable Field of View
  • Noisefighters Panobridge M1 | 1.9 oz Metal Night Vision Bridge offering Adjustable Field of View
  • Noisefighters Panobridge M1 | 1.9 oz Metal Night Vision Bridge offering Adjustable Field of View
  • Noisefighters Panobridge M1 | 1.9 oz Metal Night Vision Bridge offering Adjustable Field of View
Now: $500.00
Was: $600.00
Frequently bought together:

Description

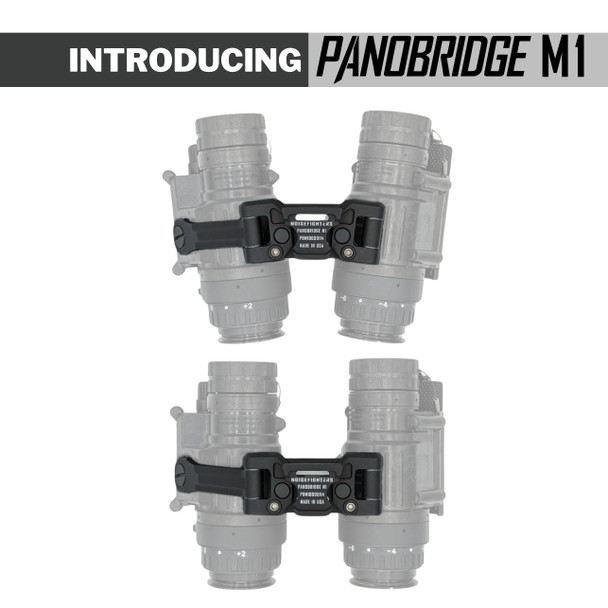

Panobridge™ M1 is an advanced, incredibly lightweight, all-metal night vision bridge mount that provides our patent-pending Adjustable Field of View technology with two milspec AN/PVS-14s and full compatibility with a variety of thermal monoculars. At an industry-leading 1.9 oz total, it weighs the same as a single polymer milspec J-Arm, yet its structure is made entirely of high-performance 7075-T6 aluminum alloy. Introducing the new industry standard in dual night vision monocular mounting. Building on our experience launching the world's first Adjustable Field of View (AFOV) night vision bridge mount, the polymer Panobridge, plus our all-metal Panobridge M-SEVEN and M-ZERO fixed pan-angle bridges, the patent pending, all-metal Noisefighters Panobridge M1 is our newest and highest-performance model. For those who need on-the-fly pan angle adjustment with the ability to individually lock each side, extreme rigidity, and bulletproof durability, the M1 is the best choice. To adjust the pan angle, simply grab one arm and firmly rotate the friction-based mechanism. To mechanically lock an arm at the chosen pan angle, take a 3/32" hex wrench or the 3/32" bit from the included NVAT (Night Vision Accessory Tool) and tighten the top-mounted set screw.

CONSIDERATIONS TO ACCOUNT FOR:

1. There is a technical consideration called collimation that may need to be accounted for when using two PVS-14 monoculars. In the simplest terms, images from two bridged monoculars may not be perfectly in tune. For most users, this is not an issue that can be easily perceived, as the brain can usually overcome this misalignment. At worst, the user will experience eye strain after long periods of time using their night vision goggle. If necessary, hire a technician to collimate your paired PVS-14s, or read online about how to perform a DIY collimation. Done correctly, there is no need to re-purge the monocular.
2. No auto-shutoff system is integrated. Users must manually turn off the monocular when flipping up and stowing equipment on the top of the helmet.
3. This bridge is NOT COMPATIBLE with bayonet-style night vision helmet mounts. You MUST HAVE a dovetail-type night vision helmet mount. The cheapest yet adequate option for a sturdy dovetail-compatible helmet mount is to purchase a military surplus Norotos® RHNO-II (bayonet) mount and modify it to accept the Norotos PVS-15/18 dovetail adapter. Instructions can be found on YouTube here. Our recommendation for a pre-assembled helmet mount with dovetail adapter is the Wilcox® G24.

PANOBRIDGE M1 SPECIFICATIONS:

  • INCLUDED IN BOX: PANOBRIDGE M1 WITH LEFT AND RIGHT SIDE PVS-14 MOUNTING ARMS, NIGHT VISION ACCESSORY TOOL, TWO ADAPTERS FOR MOUNTING NOCTURN INDUSTRIES TANTO MONOCULARS (ADDITIONAL ARMS AND ADAPTERS ARE SOLD SEPARATELY),
  • INCLUDED ARMS ARE COMPATIBLE WITH: MILSPEC AN/PVS-14, PHOTONIS VYPER-14, AB NIGHT VISION MOD3 (AUTOGAIN VERSION ONLY), KNIGHT’S ARMAMENT M-14 ALLOY CHASSIS FOR AN/PVS-14, NOCTURN INDUSTRIES TANTO (A SEPARATE ADAPTER IS INCLUDED IN ORDER TO FIT THIS MONOCULAR)
  • HELMET MOUNTING COMPATIBILITY: DOVETAIL
  • INTERPUPILLARY DISTANCE (IPD) COMPATIBILITY: 55 - 75mm
  • MATERIALS USED: 7075-T6 HARDCOAT ANODIZED ALUMINUM ALLOY; STAINLESS STEEL

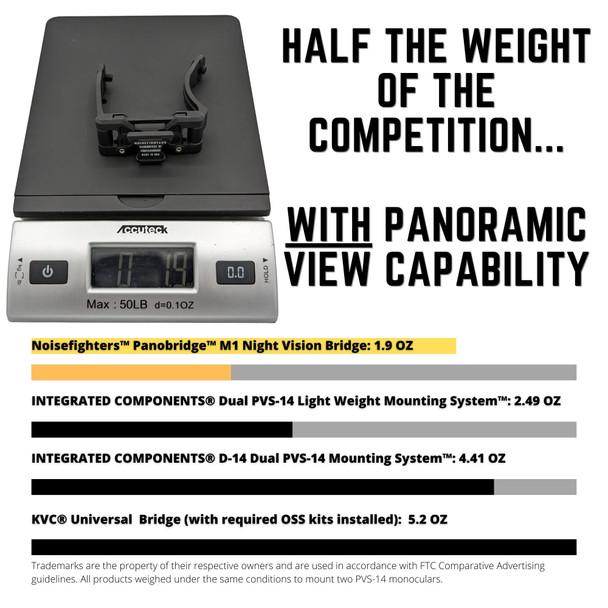

  • TOTAL ASSEMBLED WEIGHT OF THIS PRODUCT: 1.9 OZ
  • DIMENSIONS (COLLAPSED FOR STORAGE): 3.00 x 3.00 x 1.50"
  • COMBINED WEIGHT WITH TWO MILSPEC PVS-14'S ATTACHED (ELBIT 11769 TUBES, NO BATTERIES, NO EYECUP RETAINING RINGS, NO RUBBER EYECUPS, NO DEMIST SHIELDS INSTALLED): 23.6 OZ
  • COMBINED WEIGHT WITH TWO LIGHTWEIGHT NIGHTLINE NL914C POWER PACK EQUIPPED PVS-14 MONOCULARS (ELBIT 11769 TUBES, NO BATTERIES, NO EYECUP RETAINING RINGS, NO RUBBER EYECUPS, NO DEMIST SHIELDS INSTALLED): 21.9 OZ
  • COMBINED WEIGHT WITH TWO LIGHTWEIGHT NIGHTLINE NL914C POWER PACK EQUIPPED PVS-14 MONOCULARS WITH RPO LIGHTWEIGHT LENSES (ELBIT 11769 TUBES, NO BATTERIES, NO EYECUP RETAINING RINGS, NO RUBBER EYECUPS, NO DEMIST SHIELDS INSTALLED): 20.3 OZ
  • COMBINED WEIGHT WITH TWO NOCTURN INDUSTRIES TANTO MONOCULARS WITH RPO LIGHTWEIGHT LENSES (ELBIT 11769 TUBES, NO BATTERIES, NO EYECUP RETAINING RINGS, NO RUBBER EYECUPS, NO DEMIST SHIELDS INSTALLED): 16.2 OZ
  • WARRANTY: LIFETIME, TRANSFERABLE

NIGHT VISION / THERMAL DEVICES SHOWN IN PICTURES ARE NOT INCLUDED
