Overview

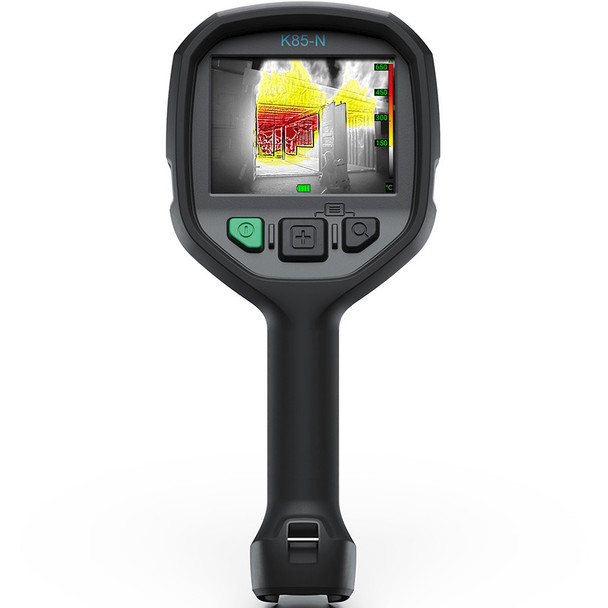

The Flir K85-N gives firefighters clearer vision and greater confidence in smoke-filled, high-heat environments. Fully certified to NFPA 1930:2025, this next-generation TIC combines sharp 640 × 480 resolution, enhanced contrast, and a single-range imaging solution that reveals critical scene detail without switching ranges or losing situational awareness.
Purpose-built firefighting modes help crews adapt to changing conditions on the fireground, while improved ergonomics, easier cleaning, and high-clarity zoom support faster, more effective operation. Plus, seamless connectivity with the Flir Responder App extends the camera’s value before, during, and after the mission through camera setup, over-the-air updates, wireless streaming, media handling, reporting, training, and post-incident review.
Smoke obscures. Flir reveals.
- Certified for the latest standard
- Fully certified to NFPA 1930:2025, the K85-N gives departments a future-ready firefighting TIC aligned with the newest standard.
- Clear detail without range switching
- With 640 × 480 resolution, enhanced contrast, and a single-range imaging solution, the K85-N helps firefighters see critical details in smoke and high heat without interruptions, image freeze, or loss of awareness.
- Support before, during, and after the mission
- Compatibility with the Flir Responder App gives crews more than just on-scene visibility: it supports camera setup at the station, wireless streaming in operation, and faster media handling, training, and post-incident review afterwards.
Specifications
- Highlighted
- IR Resolution: 640 × 480
- Display: 4” LCD, 640 × 480, backlit, 60 Hz display frame rate
- Object Temperature Range: Single range solution operating: -20°C to 650°C (-4°F to 1202°F)
- Image Modes: TI Basic, Search, Detection, High Heat, White Hot
- Imaging & Optical
- Contrast optimization: Digital enhancement, Flexible Scene Enhancement (FSX®)
- Detector Type: Focal plane array (FPA), uncooled microbolometer
- Field of view (FOV): 53° × 40°
- Image Frequency: 30 Hz
- Image Modes: TI Basic, Search, Detection, High Heat, White Hot
- IR Resolution: 640 × 480
- Non-radiometric IR video recording: MPEG4 to internal flash memory
- Non-radiometric IR video streaming: Uncompressed colorized video using USB and MPEG-4 Stream over Wi-Fi to Flir Responder app
- Pitch: 12 μm
- Spectral Range: 7.5 μm to 14 μm
- Thermal Sensitivity/NETD: <60 mK
- Zoom: 2x digital zoom
- Environmental & Certifications
- Compliance: NFPA 1930:2025
- Drop: 2 m (6.6 ft) on concrete floor (IEC 60068-2-31)
- EMC:
- EN 301 489-1 RED
- EN 301 489-17
- EN 55032 Class B (Emission)
- EN 55035 (Immunity)
- EN 61000-6-2 Immunity according to Industrial EN 61000-6-3 380–480 MHz
- EN 61000-6-3 800–960 MHz
- EN 60945 Maritime equipment
- FCC 47 CFR part 15 B, class B (Emission)
- ICES-003
- Encapsulation: IP67 (IEC 60529)
- Humidity (Operating and Storage): IEC 60068-2-30/24 h 95
- Magnetic fields: EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment)
- Operating Temperature Range: -20°C to 60°C (-4°F to 140°F); 150°C (302°F): 15 min; 260°C (500°F): 5 min
- Relative Humidity: 95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing
- Safety: CE/EN/UL/CSA/PSE 60950-1 IEC 62368
- Shock: 25 g (IEC 60068-2-27)
- Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)
- Vibration: 2 g (IEC 60068-2-6)
- Power
- Battery capacity: 6.2 Ah, at 20°C to 25°C (68°F to 77°F)
- Battery operating time: Approx. 4 hours @ 25°C (77°F) ambient temperature and typical use
- Battery Type: Li-Ion
- Battery voltage: 3.6 V
- Charging system: Desktop 2-bay charger; Optional in-truck charger
- Charging Temperature: 0°C to 45°C (32°F to 113°F)
- Charging Time: <3 h to capacity enough for 3 h operation
- Power Management: Automatic shutdown and sleep mode; For documents like MSDS and UN38.3 test reports/summaries
- Measurement & Analysis
- Accuracy: ±4°C (±7.2°F) or ±6% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F)
- Object Temperature Range: Single range solution operating: -20°C to 650°C (-4°F to 1202°F)
- General
- Package Includes:
- Infrared camera
- Battery (2 ea.)
- Battery charger
- Carabiner strap
- Torx screwdriver (T20)
- Power supply
- Printed documentation
- Retractable lanyard, 16 N (58 oz)
- USB cable
- Package Includes:
- User Interface
- Display: 4" LCD, 640 × 480, backlit, 60 Hz display frame rate
- Communication & Data Storage
- File Formats: Standard JPEG, stored in the camera and on the Flir Responder app
- Image Storage Capacity: 200 files in total (N.B. The total number of files varies dependent on the number of saved video clips)
- Interface: Update via OTA (Wi-Fi using the Flir Responder app); Legacy support for updates from PC and data transfer to and from PC
- Storage Media: Internal flash memory
- USB: USB-C
