Arisaka Side Scout Mount M-Lok

The Arisaka Side Scout Mount (SSM) is designed for use with Surefire Scout Lights, the Modlite PLH and OKW weapon lights, the Arisaka 300, 600 and 18650 Series, the Streamlight Protac Rail Mount lights, and the Olight Odin. It replaces the stock Picatinny rail adapter with a low profile mount for M-Lok handguards, and tucks the light underneath either side of the ATPIAL laser/illuminator series, including the ATPIAL-C, AN/PEQ15, and LA-5/PEQ. It will also allow the light to clear an NGAL and the QD lever on the Steiner DBAL I2, A3, and D2.

Compatible with the Modlite PLH, PLHv2 and OKW, Surefire M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V, Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), Olight Odin, CD REIN, and Arisaka 300, 600 and 18650 Series.

The longer base Scout lights like the M620, M951/2 and M961/2 can be used with the Side Scout Mount with the addition of our Offset M620 adapter.

As a bonus, the Side Scout Mount also works nicely on the Sig MPX PCC and MCX Virtus M-Lok handguards.

SKU: SSM-M

Length: 1.265"

Thickness: 0.2"

Weight: 0.6 oz

The mount is CNC machined from 6061-T651 aluminum and MIL-A-8625 Type III hard coat anodized. Includes necessary screws to attach light body to mount. Requires an IP20 TorxPlus driver for installation (not included). A T9 Torx driver is required to remove the stock Picatinny mount from Surefire Scout Lights. Recommended torque: 30 inch lbs for M-Lok screws and 20 inch lbs for light body screws with medium strength threadlocker.

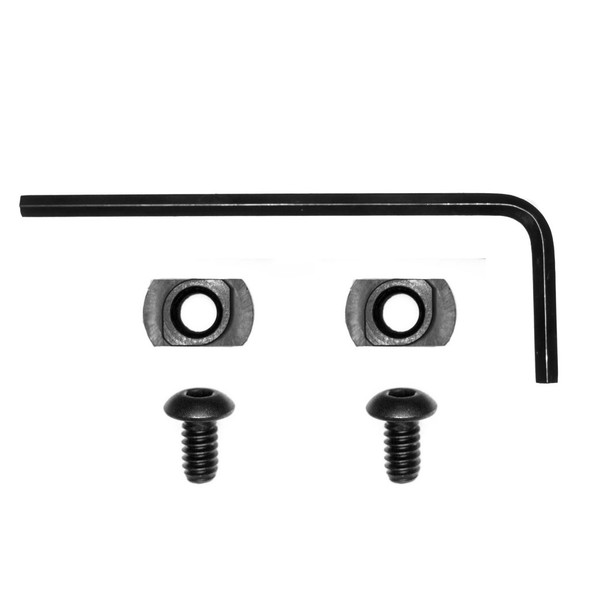

Hardware: Two M-Lok nuts, two 10-24x5/16" Torx button head screws, two 8-32x5/16" Torx flat head screws.

Made in the USA.

M-Lok Installation Guide
