Overview

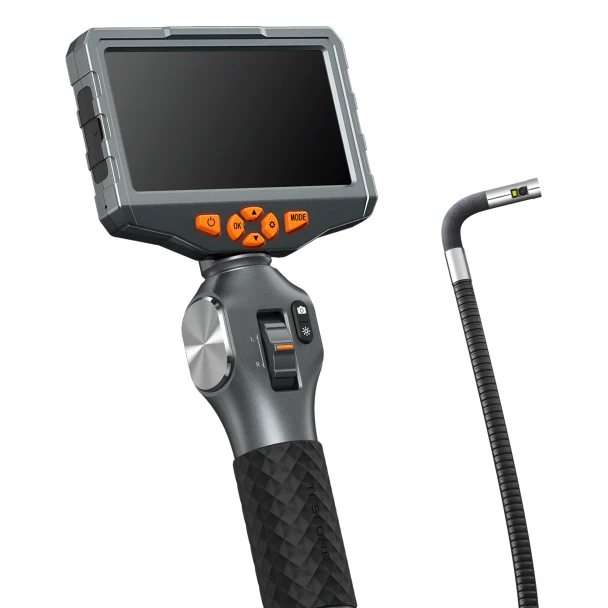

A portable, handheld, multi-function inspection system. With its articulating probe and dual camera lenses, the probe can be controlled by hand to look in different directions. This is perfect for many applications, such as inspecting engine cylinders, inside airplane wings, behind instrument panels, and inside brake systems.

This 6.5 mm (0.25 in) diameter inspection camera has two cameras on its end. The 5-foot-long probe is bendable, but still fairly stiff to hold its shape well and allow you to form it and insert it into a space. Once it's in position, you can use the control wheel to articulate the tip through 210-degrees of movement.

All-In-One Articulating Inspection Camera That Can Look Around Corners

Two-Way 210° Articulation on a 5.08 ft Probe
6.5 mm Dual Lens Diameter Camera Probe
1.0 MP Sensor captures 1920×1080 resolution photos & videos
LED Ring Lights illuminate the darkest areas
32 GB MicroSD Card included to store photos & videos

Features

Straight-viewing and Side-viewing Camera Lenses
This inspection camera has a first-of-its kind probe design with dual lenses plus 210° of articulation. See more of everything and maintain the best control, even in tight spaces.
Designed for professionals
Built with high-quality, durable materials. It comes with a built-in 3000mAh rechargeable battery and works right out of the box.
Wi-Fi Remote viewing—CAPTURE PHOTOS & VIDEOS
The TD500 captures photos, videos, and audio. The monitor includes a microphone and speaker, optimizing it for making vocal notes and listening to videos when in playback mode. The TD500 also has Wi-Fi remote viewing to connect to any mobile device and view on a separate screen. When in W-Fi remote viewing mode, photos and videos can be captured and saved directly to your mobile device.
- Wi-Fi Connection to mobile devices
- Built-in Microphone and Speaker
- Built-in 32 GB Memory Card
- Adjustable LED Lights
- IP67 Waterproof Rating
- Up to 4 Hours of Working Time

Technical Specs

Monitor
- Screen Size: 5-inch
- Screen Resolution: 854×480 pixels
- Image Capturing Resolution: 1280×720 and 1920×1080 pixels
- Video Recording Resolution: 1280×720 and 1920×1080 pixels
- Storage: 32 GB MicroSD card
- Remote Viewing: Wi-Fi
- Ports: USB-C charging port, Micro-SD/TF card slot
- Power Source: 3000mAh lithium battery
- Battery Life: 3–4 hours
Camera
- Type: Dual Lens
- Probe Diameter: 0.256 in (6.5 mm)
- Probe Length: 5.08 ft (1.55 m)
- Articulation Angle: 210°
- Depth of Field:
  - Straight-viewing: 0.4 in to infinity
  - Side-viewing: 0.4 in to infinity
- Field of View:
  - Straight-viewing: 90°
  - Side-viewing: 90°
- Megapixels: 1.0 Megapixel
- LED Lights:
  - Straight-viewing: 6 Adjustable High-intensity LEDs
  - Side-viewing: 1 Adjustable High-intensity LED
- Probe Stiffness: Stiff but flexible
- Splash, Water, and Dust Resistant: Rated IP67 (maximum depth of 1 meter up to 30 minutes) under IEC standard 60529

What is in the package

Inspection Camera
32 GB MicroSD Memory Card
USB-C Charging Cable
Accessories: Hook, Magnet
Carrying Case

Instructions and Manuals
