Overview

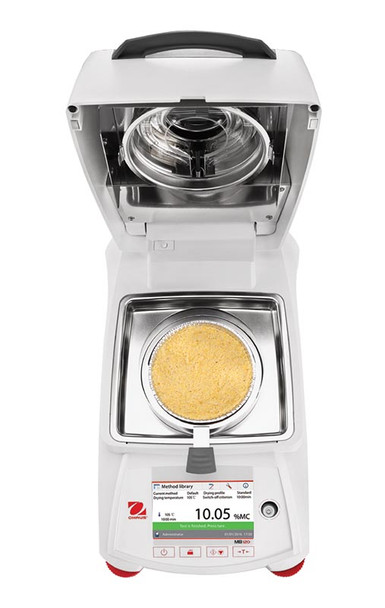

Moisture Analyzers MB120; Faster, Smarter, More Efficient Moisture Analysis
Moisture affects everything we use on a daily basis. Therefore, in many cases it is important to be able to accurately determine the moisture content of samples. Equipped to handle routine and sophisticated measurements, our flagship moisture analyzer MB120 makes the whole process faster, easier, and more efficient. The MB120 allows you to analyze more samples, access saved data, and spend less time prepping and more time putting your results to work.
Applications
Percent Moisture Determination, Percent Moisture Regain Determination, Percent Solid Determination, Weighing
Display
4.3" TFT color touchscreen display
Operation
Power cord (included)
Communication
RS232 with GLP/GMP data output, USB Host and USB Device (included)
Construction
Metal base, ABS top housing, halogen heat source, stainless steel pan support, stainless steel pan handler, in-use cover
Design Features
Seven shut-off criteria (manual, timed, autofree %/s, autofree mg/s, A30, A60 and A90), four drying profiles (standard, fast, ramp and step), storage up to 100 methods and 1000 test results for all methods, user guide, 40°C to 230°C heating temperature range (1°C increments), 14 operational languages
Features
- Get started quickly with SmartGuide™. This revolutionary feature automatically analyzes a sample and creates a method, thereby removing the guesswork from the initial setup.
- The MB120 has the capability to produce fast and accurate results due to features such as a halogen heating system, customizable shut-off criteria and four built in drying profiles.
- The MB120 allows storage of up to 100 methods and 1,000 measurement results. Stored results can be exported, and methods can be shared across multiple devices.
Specifications
- Maximum Capacity: 120 g
- Readability Moisture Content: 1 mg/0.01%
- Pan Size: 3.5 in (90 mm)
- Heater Type: Halogen Lamp
- Communication: USB device; USB host x 2; RS232
- Dimensions: 13.98 in x 7.09 in x 8.31 in (355 mm x 180 mm x 211 mm) (LxHxW)
