Overview

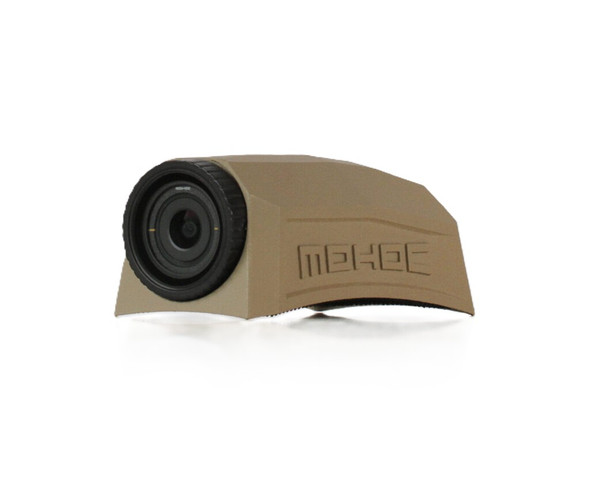

Designed as a customizable platform, MOHOC® 2 can be tailored to match many C6ISR requirements. The MOHOC® 2 Camera is built to stream real-time video over mobile ad hoc networking (MANET) radios. Created as a live sensor for the hyper-enabled operator, it maximizes situational awareness at the tactical edge.
MOHOC® 2 SDI outputs SDI video compatible with the Persistent Systems MPU5 MANET and DTC SOL8DSR-H2 radios.
- 20x Improved Low-Light Sensitivity
- Plug-and-Play Radio Integration- SDI camera designed to connect directly to Persistent Systems MPU5 and DTC SOL8 radio via HD BNC video input
- MIL Spec cables and ports – Din1.0/2.3 to HD BNC for video output and Push Pull to Male USB to power off the radio or external USB power source
- All MOHOC® 2 cameras are available for purchase in Black, Tan, and MIL Green.
MOHOC® 2 cameras are built to order, so estimated lead time is 60 days after receipt of order. MOHOC Customer Service will be in touch after your order to confirm color, connected device compatibility, and estimated lead time.
Specifications
- 3G-SDI STREAM 1080p25/30/50/60, 720p25/30, 720p50/60, 1080i50/60
- ANALOG STREAM CVBS-D1
- ON SCREEN DISPLAY Available Via OSD Switch & Serial Port
- POWER CONSUMPTION DC5~18V, 140mA@12V with 3G-SD
- COMMUNICATION Yes (RS485 ) // RX only
- US Pat no. 10,802,379
- MOHOC 2 SDI Spec Sheet
