Overview

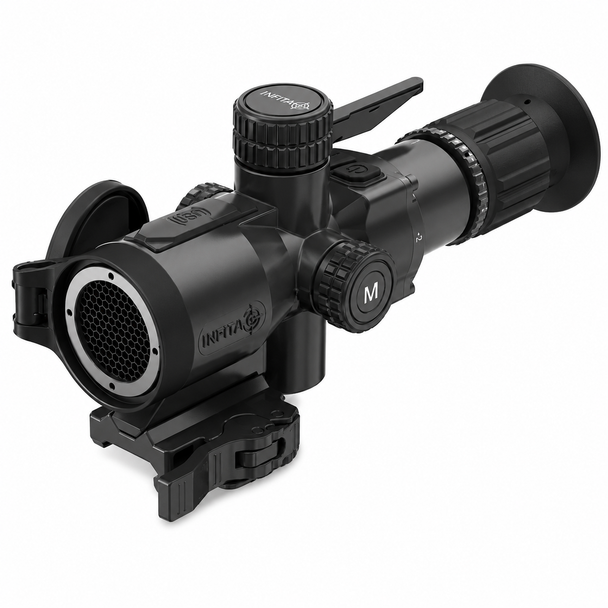

Introducing the INFITAC IOTS thermal rifle sights: IOP13 & IOL25. Featuring 256×192 and 384×288 sensors at 50 Hz, the series is built for versatile use—handheld, standalone, Clip-On, and 45° offset red dot integration.
Paired with the DNVS-14 Pro, advanced IoT connectivity enables real-time shared vision in the field. A large exit pupil, extended eye relief, and wide FOV ensure comfort and enhanced situational awareness.
Equipped with F1.0 lenses (13mm / 25mm), both models deliver sharp thermal imaging in tough conditions, all within a rugged IP67-rated design.
Innovation & Capabilities
- 3 +1 multi-purpose use: Handheld, Standalone, Clip-On（1.5 inch) and 45° Offset Mount for red dot（RMR platform）
- IoT Wireless Interconnection
- Super Resolution Engine
- Tactical Design
- Flash Killer
- Shuttered Eyecup
- Multi Color Palette & Reticle Type
- Focus Free
- Replaceable 18650 Battery: Up to 7h (IOP13) / 6h (IOL25)
Specifications
- Resolution, pixels: 384×288@12μm
- Objective Lens, mm: 25 F1.0
- NETD, mK: ≤20
- Field of View (HxV), °: 10.5×7.9
- Focus Range, yds: 5 yds~∞
- Base Magnification: 2×
- Digital Zoom: 1× / 2× / 4× / 8×
- Frame Rate, Hz: 50 Hz
- Max. Operation Time (at temp. -71.6°F), h: Thermal mode ≥ 6 h
- Battery: 18650
- External Power Supply: Type C, 5V
- Color Palettes: White Hot, Black Hot, Red Hot, Color, Iron
- IP Rating: IP67, 33 ft. (10 m) depth
- Max. Recoil: 1200 g/s²
- Operating Temperature, °F: -4°F ~ +122°F (-20°C ~ +50°C)
- Weight: ≤18.3 oz (520 g)
- Dimension: ≤5.6 × 2.7 × 3.5 inch (141 × 68 × 89 mm)
- Material: AL6061-T6
- Display Type: 0.39 inch 1024 × 768 AMOLED
What's In The Box
- IOL25 Thermal sight
- Picatinny mount
- 45° Offset mount for red dot
- M4 L-shaped Hex Wrench ×1
- M3 L-shaped Hex Wrench ×1
- M4×10 Hex Screws ×2
- M3×8 Hex Screws ×2
- Shorter Battery Cover
- Rechargeable 18650 batteries ×2
- Rubber Eyeguard
- Objective lens cap
- Flash Killer (Anti-Reflection device)
- Lens Cloth
- USB Type-C Cable
- INFITAC Brand Sticker
- INFITAC Hook and Loop Fastener
- Heated Target for Zeroing ×2
- User Manual
- Warranty Card
Note
- To accommodate variations in the length of 18650 batteries, the product comes with two battery covers. If the 18650 battery used is shorter than the provided one, please use the shorter battery cover.
- The included 45° red dot mounting adapter features a standard RMR interface, compatible with most RMR-interface red dot sights.
