Overview

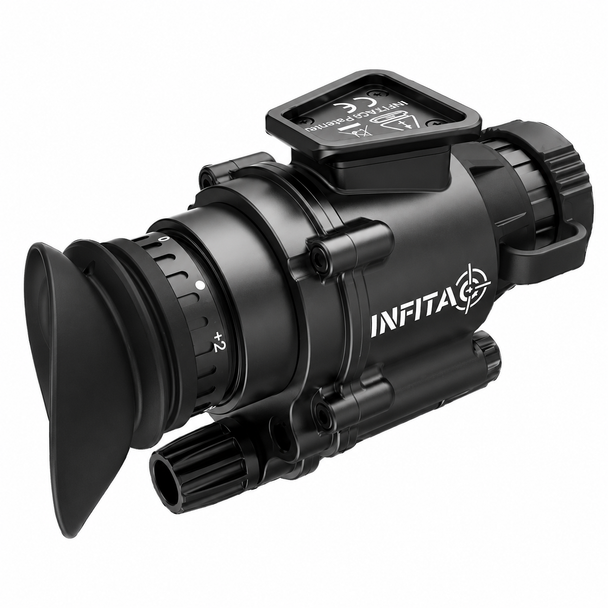

The INFITAC DNVS-14 Pro (Digital Night Vision System) is designed with a high-resolution 100Hz CMOS sensor and a wide 45º field of view through a 22mm F1.1 lens. DNVS-14 Pro is equipped with an advanced IoT wireless interconnection in its smart battery pack,which enables to transmit images from the Thermal Sight (IOTS) to its own display screen for real-time image and data sharing, as well as support for photo, video, audio recording,and storage functions. Housed within a durable, IP67-rated design, the DNVS-14 Pro ensures operation in various environmental conditions. Powered by two replaceable 18650 batteries, the DNVS-14 Pro offers extended operational readiness, making it a top choice for home defense, and tactical training.
Inovation & Capabilities
- The second generation of high-sensitivity CMOS sensor
- World's First 100Hz Helmet Mounted Night Vision Device
- IoT Wireless Interconnection
- Ultra Compact & Lightweight
- Multimedia Capture System with 32GB internal storage
- Flexible Helmet Mounting with a Standard Wilcox Interface
- Multi Color Palettes: Original / White/ Green
Specifications
- Digital Detector
- Sensor Type: DG1802 CMOS
- Visible Spectrum: 400–1100 nm
- Minimum Ambient Illumination: 0.0001 lx
- Frame Rate: 50 Hz / 100 Hz
- Optical
- Objective Lens: 22 mm / F1.1
- Magnification: 1×
- Focus Range: 0.5 yds to ∞
- Field of View: 45° diagonal (37° horizontal × 28° vertical)
- Diopter Adjustment: -5 to +2 D
- Display Type: 0.6-inch 800 × 600 AMOLED
- Battery Power Supply
- Battery Type: 2 × 18650 rechargeable batteries
- Maximum Operating Time: Up to 20 hours (at 100 Hz, 22°C)
- External Power Supply: 5V USB
- Functions
- E-Zoom: 1×, 2×, 4×
- Photo/Video Recorder: Supported
- IoT Wireless Connectivity: Supported
- Memory Capacity: 32 GB
- Physical
- Material: AL6063-T6
- IP Rating: IP67
- Operating Temperature: -4°F to +122°F (-20°C to +50°C)
- Weight (Battery Pack Not Included): ≤7.4 oz (210 g)
- Dimensions (Eyeguard Not Included): ≤3.6 × 2.66 × 1.77 in (91.5 × 67.5 × 45 mm)
