Overview

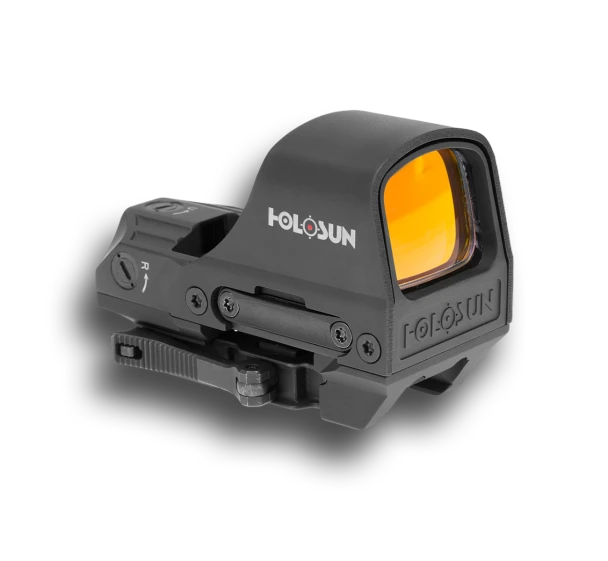

The HS510C is an open reflex optic built for carbines, PCCs, and shotguns, featuring a wide viewing window and Multi-Reticle System for fast, adaptable target acquisition.
Its aluminum housing with a titanium hood, combined with Solar Failsafe and Shake Awake, delivers lightweight durability and dependable performance in demanding shooting environments.
- Red Multi-Reticle System (MRS): Selectable Red 2 MOA dot, 65 MOA circle, or combined circle-dot reticle for adaptable targeting.
- Solar Failsafe Technology: Solar panel supplements battery power and automatically adjusts brightness in changing light.
- Shake Awake Technology: Motion activation powers the optic instantly while preserving battery life when idle.
- Titanium Protective Hood: Reinforced hood design improves durability and protects the optic from impact.
- Quick Detach Co-Witness Mount: Integrated QD mount with 1.41 inch dot height for fast installation and iron sight alignment.
- Open Reflex Sight Window: Large viewing window supports faster sight acquisition and improved situational awareness.
Specifications
Functions
- Selectable Reticle: Yes
- Solar Power: Yes
- Shake Awake Technology: Yes
- Auto Off: Yes
- Memory: Yes
- Manual Brightness: Yes
- Automatic Brightness: Yes
- Lockout Mode: Yes
Optical Data
- Light Source: LED
- Wavelength: 650nm
- Reticle: 2 MOA Dot & 65 MOA Circle
- Magnification: 1x
- Parallax: No
- Unlimited Eye Relief: Yes
- Multi-Coatings: Yes
Electronic Data
- Battery: CR2032
- Battery Life (Setting 6): 50,000 Hours
- Brightness Setting: 10 Daylight & 2 NV
- Side Tray: Yes
Mechanical Data
- Housing Material: Aluminum & Titanium
- Surface Finish: MAO
- Housing Color: Black
- Adjustment Per Click: 0.5 MOA
- W&E Travel Range: ±50 MOA
- Storage Temperature: -40°C~70°C
- Working Temperature: -30°C~60°C
- Submersion: IP67
- Vibration: 5000G
Physical Data
- Window Size (in): 0.91" x 1.26"
- Dimension (in) Body: 3.3" x 1.68" x 1.78"
- Body (oz) Weight: 4.94 oz
