Overview

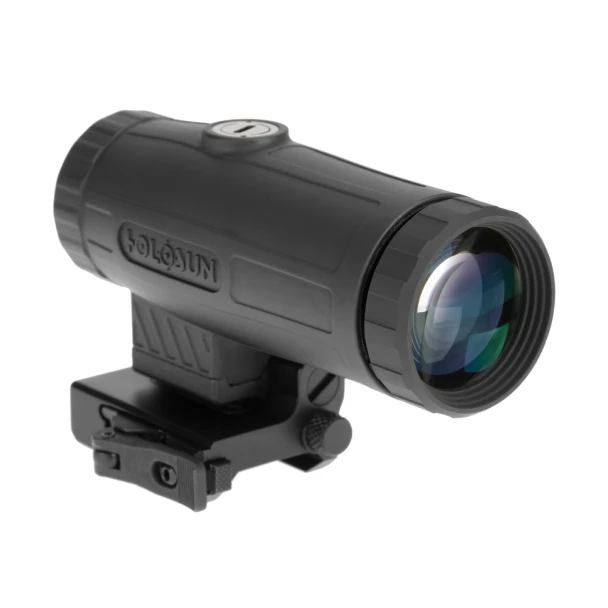

The HM3X is a rugged 3X magnifier designed to extend the capability of red dot optics on rifles and carbines, improving target identification and precision at distance. Its durable aluminum housing, flip-to-side QD mount, and adjustable co-witness height provide fast transitions and reliable integration with modern red dot setups.
Features
- 3X Precision Magnification
- Provides fixed 3x magnification to enhance target identification and engagement capability at extended distances.
- Flip-to-Side Quick Detach Mount
- Ambidextrous flip-to-side mount allows instant transition between magnified and unmagnified views for dynamic shooting situations.
- Absolute & Lower 1/3 Height Compatibility
- Included spacer allows seamless alignment with both absolute and lower 1/3 co-witness red dot optics.
- Generous Eye Relief
- 70mm (2.75 inch) eye relief provides a comfortable shooting position and full field of view behind the magnifier.
- Wide Field of View
- 7 degree field of view delivers excellent situational awareness and fast target acquisition when magnified.
- Adjustable Diopter System
- ±3 diopter adjustment allows users to fine tune focus for clear sight picture based on individual eyesight.
- Precision Alignment Adjustments
- Integrated windage and elevation adjustments ensure proper alignment with your primary red dot optic.
- Durable Aluminum Housing
- Rugged aluminum construction with MAO surface finish provides excellent durability and corrosion resistance.
- Nitrogen Purged Optics
- Internal nitrogen purging prevents fogging and maintains optical clarity in harsh weather conditions.
- IP67 Waterproof Protection
- Sealed construction protects the magnifier from water, dust, and environmental exposure for reliable field performance.
Specifications
- Functions
- Flip To Side Mount: Yes
- Compatible with Absolute & Lower 1/3 Height Optics: Yes
- Shake Awake Technology: N/A
- QD Mount & Spacer Included: Yes
- Optical Data
- Magnification: 3x
- Exit Pupil: 7.6mm
- Eye Relief: 70mm
- Field of View: 7°
- Diopter: ±3D
- Transmittance: .75
- T. Lens Material: Optical Glass
- Electronic Data
- Battery: N/A
- Battery Life (Setting 6): N/A
- Brightness Setting: N/A
- Removable Battery: N/A
- Battery Location: N/A
- Mechanical Data
- Housing Material: Durable Aluminum
- Surface Finish: MAO
- Housing Color: Black
- Adjustment Per Click: 0.5 MOA
- W&E Travel Range: ±50 MOA
- Storage Temperature: -40°C~70°C
- Working Temperature: -30°C~60°C
- Submersion: IPX67
- Vibration: 1000G
- Physical Data
- Window Size (in): N/A
- Dimension (in) Body: 4" x 1.7" x 2.5"
- Body (oz) Weight: 9.8 oz
- Direct Mount
- Picatinny Rail
In the Box
- HM3X
- Lower 1/3 Spacer
- Lens Cloth
- Multi-Tool
- Manual
- Warranty Card
