Overview

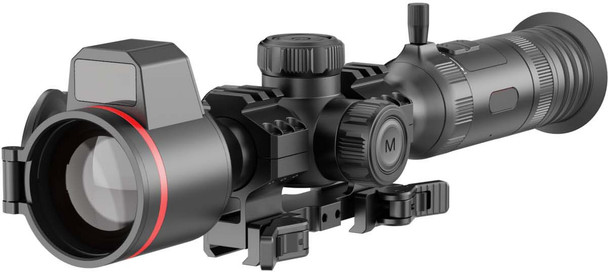

The Guide TU425C 3.0 flips that story. Its ultra-light design keeps you moving freely through the scrub, while the superb eye relief makes every glance easy and comfortable. You’ll finish your hunt as fresh and focused as when you started, ready to take the shot with complete confidence.
Features
- 400x300 Thermal Sensor
- 1.43'' TOUCHSCREEN AMOLED 466×466
- 1400yd Detection Range
- Compact LPVO Style
- Shutterless design, no image freezing and clicking sound
- Dual battery system: 1x internal (USB-C rechargeable) and 1x external (18650)
- 12 hours battery life
LPVO Style Ultra Light & Compact
By adopting a LPVO style design, the TU C 3.0 Series revolutionarily combines ultra-compact housing with advanced thermal technology, providing a superior size and weight experience compared to traditional scopes.
Ultra-Clear Sensitivity
20mK NETD for exceptional infrared imaging.
Comfortable Viewing Experience
1.43'' AMOLED TOUCHSCREEN 466×466 display for clear, smooth visuals.
Shutterless Design
Innovative 3.0 shutterless design ensures smooth, uninterrupted visuals.
Seamless Control
Centrally positioned focus wheel & zoom lever, ergonomically designed for effortless operation.
Rugged Design
IP68-rated, shock resistance up to 6000J.
Specifications
- Sensor
- Type: Uncooled VOx Infrared Detector, 8 to 14μm
- Resolution: 400×300@12μm
- NETD: 20mK
- Frame rate: 50 Hz
- Lens
- Objective lens: 25mm, F1.0
- Field of view: 8.2°×8.2°
- FOV m@100m: 14×14
- Magnification: 0.7x~2.8x
- Detection range: 1300m/1400yd
- Focus: Manual
- Display
- Display type: 1.43'' AMOLED TOUCHSCREEN 466×466
- Color palettes: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia
- Hardware
- WIFI: 2.4G, 5G
- Interface: USB-C (Charge/USB2.0)
- Tube diameter: Standard 30 mm
- Others: Microphone, Bluetooth
- System
- Recording function: Photo/Video (Audio recording included)
- Memory capacity: 32GB
- Power
- Battery type: 18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)
- Operating time: 12 hours
- Environmental
- Operating temp.: -20°C to 50°C / -4°F to +122°F
- Recoil Rating: .300 Win Mag
- Shock: 6000J/1200G
- Encapsulation: IP68
- Physical
- Weight (g/oz): 438/15.45
- Size (mm/in): 245×89×70/9.65×3.50×2.76
- Standard: Device, Lens Cover, Quick-Release Scope Mount, Carry Bag, 18650 Battery ×2, Battery Charger, 5V 2A Adapter, USB-A to USB-C Cable, Quick Start Guide, Warranty Card
- Optional: Bluetooth Remote Control, 18650 Battery
