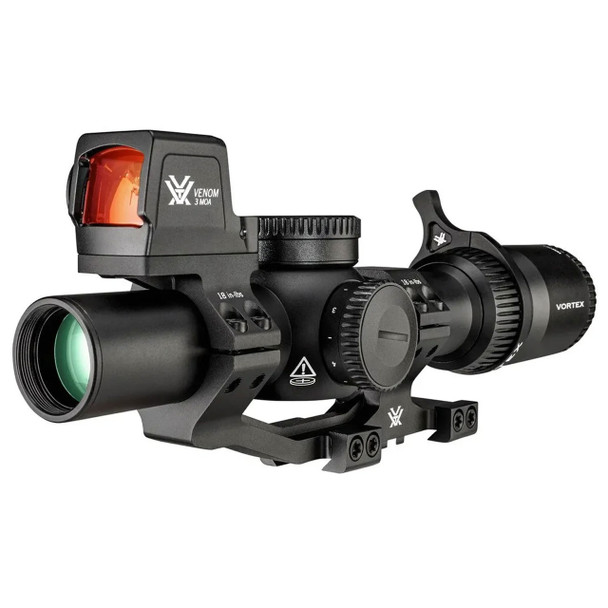

Vortex Venom AR-BDC3 3 MOA Reticle Bundle Riflescope

The Vortex Optics Venom AR-BDC3 1-6x24 SFP Riflescope with Red Dot and Mounts Pack is a comprehensive optics bundle designed for AR platform shooters who demand a versatile and capable sighting solution for both close-range and extended-range engagements right out of the box. The 1-6x24 second focal plane riflescope features the AR-BDC3 MOA reticle, providing intuitive holdovers for common AR calibers at various distances while the illuminated reticle ensures fast target acquisition in low-light conditions.

Bundled with a Vortex Venom red dot sight and mounting hardware, this package delivers a complete and ready-to-run optics setup that covers everything from room-clearing distances to mid-range precision shooting. The 30mm tube construction and fully multi-coated lenses deliver a bright, clear, and wide field of view across the full magnification range. Backed by Vortex's renowned VIP warranty, this bundle represents an exceptional value for any AR shooter looking to set up a complete and capable optics system in a single purchase.

Features

• Venom 1-6x24
  • XD™ Optical System: Premium optical system delivers impressive resolution, edge-to-edge sharpness, greatly reduces chromatic aberration, and guarantees bright, high-contrast images.
  • Fully Multi-Coated Lenses: Anti-reflective coatings on all air-to-glass surfaces provide increased light transmission for greater clarity and low-light performance.
  • Illuminated Reticle: Provides precise aiming under low-light conditions.
  • Single-Piece Tube: Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
  • Fast-Focus Eyepiece: Allows for quick and easy reticle focusing.
  • Throw Lever: The included throw lever can be installed for quick and easy magnification adjustments.
  • Aircraft Grade Aluminum: Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
  • ArmorTek®: Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
  • Low Glare Matte Black Anodize: Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
  • Waterproof: Designed to withstand harsh weather conditions.
  • Shockproof: Designed to withstand the highest levels of recoil and impact.
  • Fogproof: Designed to withstand a wide range of temperatures.
• Venom Enclosed Micro Red Dot
  • Enclosed Aluminum Housing: Durable 6061 aluminum enclosed housing protects against debris and moisture.
  • Large Viewing Window: For fast target acquisition and large field of view.
  • Aspherical Lens: For distortion-free sight picture and truer colors.
  • Motion Activation with 10 Minute Auto-Shutoff: Automatically activates with motion while 10 minute auto-shutoff saves battery life.
  • Top Buttons: For quick adjustments.
  • 10 Daylight Bright Brightness Settings: Daylight bright, illuminated center dot aids in faster center-point acquisition in bright daylight conditions.
  • Night-Vision Compatibility: The lowest 2 settings are night-vision compatible.
  • Parallax Free: All red dot and holographic sights will exhibit some small amount of parallax. Matching current industry practice, this small amount would be considered "parallax free" and will make a negligible difference in performance.
  • Unlimited Eye Relief: Non-critical eye relief for rapid target acquisition.
  • Low-Glare Matte Black Anodized: Corrosion and wear resistant anodization provides low-glare matte surface and helps camouflage the shooter's position.
  • Side Load Battery: Easy battery changes without having to re-zero your optic.
  • Waterproof: Designed to withstand harsh weather conditions.
  • Shockproof: Designed to withstand the highest levels of recoil and impact.
  • Fogproof: Designed to withstand a wide range of temperatures.

Specifications

• Venom Riflescope
  • Reticle: AR-BDC3 MOA
  • Reticle/Dot Color: Bright Red
  • Battery Type: CR2032
  • Battery Runtime: 540 hrs. @ Setting 3
  • Eye Relief: 3.7"
  • Field of View: 126.0' – 20.2' @ 100 yds
  • Turret Style: Capped
  • Tube Size: 30 mm
  • Magnification: 1–6x
  • Objective Lens Diameter: 24 mm
  • Focal Plane: Second Focal Plane
  • Adjustment Graduation: 1/4 MOA
  • Travel Per Rotation: 25 MOA
  • Max Elevation Adjustment: 140 MOA
  • Max Windage Adjustment: 140 MOA
  • Parallax Setting: 100 yds
  • Illumination Settings: 6
  • Mounting Footprint: -
  • Length: 10.3"
  • Weight (with battery): 19.5 oz.
• Venom Enclosed Micro Red Dot
  • Reticle: 3 MOA
  • Reticle/Dot Color: Bright Red
  • Battery Type: CR2032
  • Battery Runtime: 20,000 hrs. @ Setting 6
  • Eye Relief: Unlimited
  • Magnification: 1x
  • Adjustment Graduation: 1 MOA
  • Travel Per Rotation: 40 MOA
  • Max Elevation Adjustment: 150 MOA
  • Max Windage Adjustment: 150 MOA
  • Parallax Setting: Parallax Free
  • Illumination Settings: 10
  • Mounting Footprint: DeltaPoint® Pro
  • Length: 1.84"
  • Weight (with battery): 1.75 oz.

What's in the Box:

• Flip Caps
• Throw Lever
• Sunshade
• 2mm Custom Tool
• CR2032 Battery (x2)
• Ring Cap
• Rubber Cover
• Most Common Mounting Screw Sets
• Lens Cloth
• 2 Additional Torx® T-25 Screws
• Torx® T-25 Wrench (x2)
• Torx® T-10 Custom Tool

Manuals & Parts

• Instruction Card (PDF)
• Product Manual (PDF)
• Product Manual (PDF)
• Parts Diagram (PDF)
