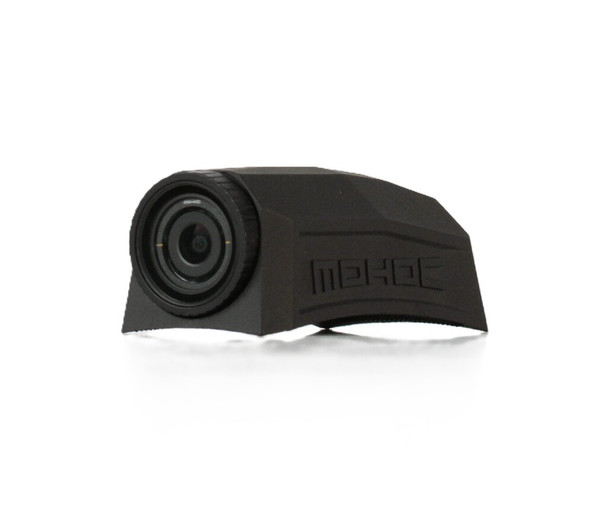

Mohoc 2 USB-UVC Camera

The MOHOC® 2 (USB-UVC model) is built for radios that accept USB-UVC video and power/data hubs such as Glenair STAR-PAN™.

• Plug-and-Play Radio Integration- connects directly to power/data hubs such as Glenair STAR-PAN™
• 20x Improved Low-Light Sensitivity
• MIL Spec cables and ports – available as a fixed standard USB cable tail that ends in a Male USB Type A or as a Glenair 807 6 Pin Male out the camera back
• Using the HelmCam App, seamlessly integrate to live stream video with the TAK Plugin for Android.  Stream live video from phone via cellular network to a TAK Video Server.
• All MOHOC® 2 cameras are available for purchase in Black, Tan, and MIL Green.

MOHOC® 2 cameras are built to order, so estimated lead time is 60 days after receipt of order.  MOHOC Customer Service will be in touch after your order to confirm color, connected device compatibility, and estimated lead time.

Features

• Output: MJPEG: 1080/720p
• Resolution: Max. 1080p (1920 × 1080)
• FPS: Max. 25/30 fps (50/60 Hz)
• Connection: Glenair 807 or standard USB cable
• Exposure: Auto
• White balance: Auto
• Gain control: Auto
• Power: USB 5V, consumption: Max. 180 mA @ DC5V
• Support: Windows, Linux, Mac, Android, etc.

Specifications

• Image sensor: 1/2.8” color CMOS (back illuminated pixels for ultra-low light)
• Min. illumination: 0.006 lux @ F2.0
• Optics/lens: Aperture F2.0, 120º field of view
• Scanning system: Progressive scan
• Electronic shutter: 50 Hz: 1/25–25,600 sec; 60 Hz: 1/30–1/30,000 sec
• Durability: 2 m (6.5 ft) drop test
• Waterproof: IP50 standard connectors, IP68 (Glenair 807) connectors optional
• Power requirement: USB 5V, consumption: Max. 180 mA @ DC5V
• Low light: Auto adjustment for optimal streaming in low light environments
• Rotating lens: Manually rotate lens up to 190º to stream horizontal video from any mounting position
• Secure attachment: Curvelock™ base designed to match helmet curvature, provides unprecedented low-profile, secure attachment via Velcro® direct to helmet or helmet cover
• Operating temp.: 14ºF–131ºF (-10ºC–+55ºC)
• Dimensions: 80 mm (3.2 in) long x 41 mm (1.6 in) wide x 32 mm (1.2 in) tall
• Weight: 71 grams (2.5 oz)
• US Pat. No. 10,802,379
• MOHOC 2 USB-UVC Spec Sheet

What's Included

• (1) MOHOC® 2 USB-UVC Camera
• (2) Industrial Strength Black VELCRO® Brand Loop Strips
• (1) Camera bag
