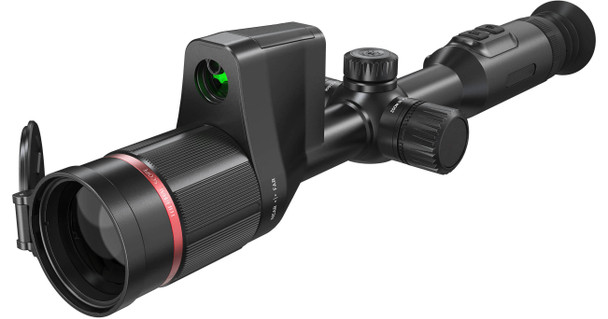

Guide Outdoor TU631LRF Thermal Riflescope

Log in for special member pricing. Use "Request Quote" for: RFQs, Bulk discounts, Out-of-stock items, Regulated products, Tax-exempt sales. Please use separate carts to keep free shipping offers. Air freight orders: Submit by 12 PM PST for same-day shipping.

SKU:
Guide Outdoor-TU 631 LRF
UPC:
6970883551026
MPN:
TU631LRF
Weight:
2.20 LBS
Price: $3,410.00

Description

The Guide Outdoor TU 631 LRF is a flagship 35mm thermal rifle scope featuring a high-resolution 640×480 thermal core, a vivid 1440×1080 AMOLED display, and a fast 50 Hz refresh rate for crisp imaging in all weather conditions. Its 35mm F1 HD lens, 1.65x base magnification, and digital zoom up to 13.2x provide exceptional clarity, while the built-in laser rangefinder delivers precise measurements out to 1500 meters. A 30mm main tube allows compatibility with traditional scope rings, and its IP67 rating ensures dependable performance in rain, dust, and harsh environments.

The TU 631 LRF offers intuitive one-touch freeze zeroing, a wide color palette selection, and advanced features such as internal video recording, photos, picture-in-picture, and Wi-Fi screen mirroring through the Guide Outdoor TargetIR app. It includes a built-in rechargeable 18650 battery and proprietary charger, delivering up to 12 hours of continuous runtime, along with USB-C compatibility for external power packs.

Features & Specifications

  • Sensor
    • Type: Uncooled VOx Infrared Detector, 8 to 14μm
    • Max Resolution: 640×480@12μm
    • NETD: 30mK
    • Frame Rate: 50 Hz
  • Lens
    • Magnification: 1.65×13.2x
    • Objective Lens: 35mm, F1.0
    • Field of View: 12.5° x 9.4°
    • FOVm@100: 22×16
    • Detection Range: 1400m/yd
  • Display
    • Display: 0.39 inch AMOLED 1440×1080
    • Color Palettes: White Hot, Black Hot, adjustable Red Hot, Green Hot, Iron Red, Blue Hot
    • Eyepiece: Exit pupil distance 48mm; Diopter+/- 4; Zoom 14x
  • Hardware
    • WIFI: 2.4G
    • Interface: USB Type-C; Micro HDMI
    • Tube Diameter: Standard 30mm
  • System
    • Recording Function: Photo/Video
    • Memory Capacity: 128GB
  • Power
    • Battery Type: Single 18650 (built in) and customized battery (external)
    • Operating Time: 12 Hours
  • Environmental
    • Operating Temp: -30C to 50C/-22F to 122F
    • Shock: 800G at 1 ms half sine pulse (as per IEC60068-2-27)
    • Encapsulation: IP67
  • Physical
    • Weight: 1250 grams/33.09 ounces
    • Size: 377x107x99mm/14.84×4.21×3.90 inches
    • Included: Device, Lens Cover, Eye Mask, 5v2A Adapter, Customized Batteryx2, Customized Battery Charger, USB Type-C Cable, Micro HDMI Cable Clipx2, Quick Start Guide, Warranty
    • Optional: Bluetooth Remote Control, Customized Battery, Extended Bracket
