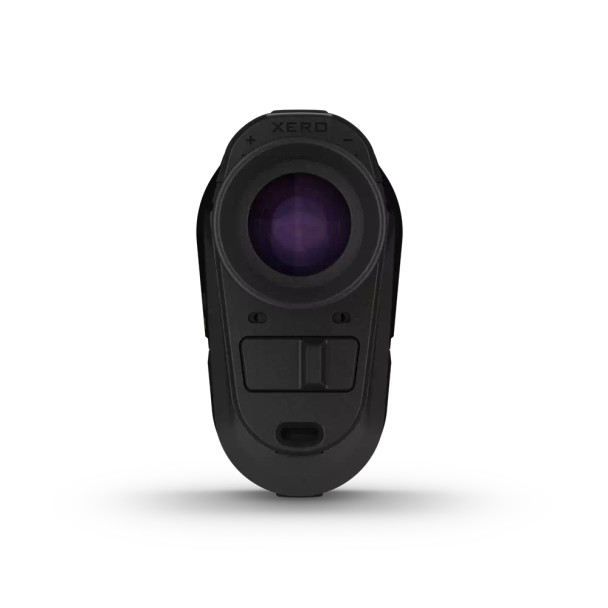

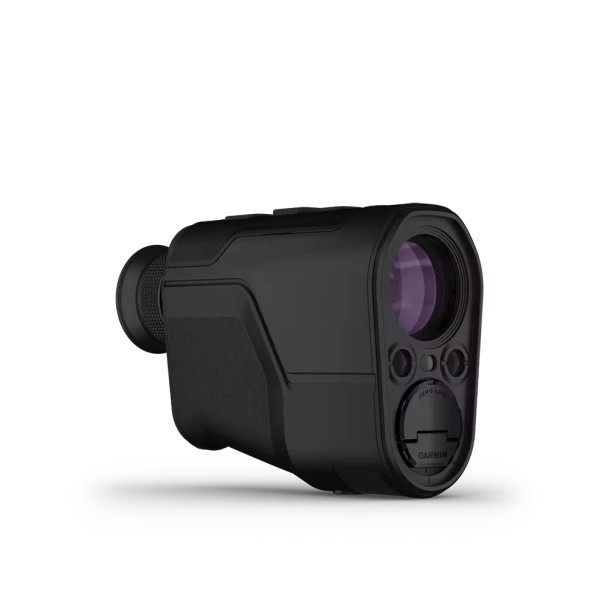

Garmin Xero L60i Laser Rangefinder

Know the distance and beyond. A revolutionary rangefinder above the rest. See your target through premium glass with a high-resolution graphic overlay that displays distance, mapping, navigation and more for an immersive visual experience.

• Full-color, high-resolution graphic display overlay
• Razor-sharp optics with 7x magnification, 32 mm objective lens and edge-to-edge clarity
• Range trees out to 2,000 yards and animals out to 1,500 yards — range even farther with the sensor locate feature
• Use the Laser Locate™ feature to drop a GPS waypoint on objects you’ve ranged
• Use Visual Recall to relocate an object you’ve ranged and use the map to navigate to it
• Access the Applied Ballistics Ultralight™ solver via the AB Quantum Garmin app for long-range shooting solutions

VERSATILE RANGE
Use the 7X magnification to range trees out to 2,000 yards and animals out to 1,500 yards. In optimal low-light conditions, reach all the way out to 7,600 yards to retro reflective objects. Get pinpoint accuracy and precision with proprietary precision lock technology.

GRAPHIC OVERLAY
Get a sharp view through a full-color, high-resolution graphic overlay that displays distance, location, mapping, ballistics, navigation and more.

NAVIGATION FEATURES
Look through the device, and let the graphic display overlay guide you to waypoints you’ve dropped with on-board TopoActive mapping. Keep your bearings with a 3-axis compass, and see elevation profiles of your route. You can even see an overhead perspective of your location on the graphic display overlay.

ADVANCED WAYPOINTS
Leverage advanced GPS technology and onboard sensors to drop a waypoint on objects you’ve ranged with the Laser Locate waypoint projection feature. Project a waypoint beyond rangeable distances with the sensor locate feature. If you lose sight of an object while traveling to it, visual recall on the graphic overlay will guide you back to it.

ONBOARD BALLISTICS
Access the onboard Applied Ballistics Ultralight solver with the AB Quantum app, and get the data you need to make the perfect shot. Archers also get arrow ballistics, such as max arrow height, angle-compensated range and more.

NAVIGATION ECOSYSTEM
Send waypoints or data to your compatible smartphone and then share it with your compatible Garmin device so you can close the distance without using the graphic overlay. Spot something but your partner can’t find it? This feature also lets you share waypoints with your partner’s compatible devices.

MAPPING
Navigate with built-in TopoActive mapping.

OVERHEAD VIEW
See your position from a bird’s-eye perspective on the graphic overlay.

ELEVATION
See an elevation profile of where you want to go on the graphic overlay.

DROP WAYPOINTS
Use Laser Locate to drop a waypoint on objects or locations you’ve ranged.

EXTENDED RANGE
Use the sensor locate feature to project a waypoint beyond rangeable distances.

TARGET LOCK TECHNOLOGY
This feature delivers precise and accurate ranges by leveraging property signal validation methods.

TACK-SHARP GLASS
Experience accurate color fidelity and superior light transmission.

DIM THE DISPLAY
Automatic display brightness controls for optimal low-light performance.

RELOCATE WAYPOINTS
The visual recall feature on the graphic overlay can guide you back to a waypoint while traveling toward it.

VISUAL RECALL
Spot something your group can’t find? Use visual recall to share an animal’s location from a distance.

BUILT TO LAST
This rangefinder is built to withstand the harsh outdoor conditions with an IPX7 water-resistance rating.

Specifications

• General
  • Dimension:
    • 4.94" x 3.53" x 1.99" (125.41 mm x 89.66 mm x 50.59 mm)
  • Weight:
    • No battery: 0.80 lbs (362.88 g)
    • With battery: 0.849 lbs (385.1 g)
  • Water rating: IPX7
  • Display type: DLP augmented reality
  • Display size: Overlaid on visual scene
  • Display resolution: 960 x 540 pixels
  • Battery type: 2 AAA lithium batteries (included)
  • Battery life: 1,400 ranges (1 sec range, 10 sec display)
  • Multi-color display: ✔
  • Operating range: -20° C to 60° C (-4° F to 140° F)
  • Memory/history: 32 GB internal less file system space
  • Interface: USB-C
  • Laser classification: Class 1
• Daily Smart Features
  • Connectivity: Bluetooth
  • Mobile app: Explore App
• Xero Laser Range Finder Features

  • Magnification: 7x
  • Objective: 32 mm
  • Field of view: 7 degrees
  • Field of View (linear feet at 1,000 yards): 365 ft
  • Eye relief: 0.71" (18 mm)
  • Exit pupil diameter: 4.6 mm
  • Focus adjustment: +/- 4 diopters
  • Compass: ✔
  • Barometer: ✔
  • Precision: +/- .1 m
  • Accuracy:
    • +/- .25 m out to 1,000 m
    • +/- 1.0 m beyond 1,000 m
  • Distance to targets (full sun): Animals: 1,375 m (1,500 yds); Trees: 1,800 m (2,000 yds); Retro reflective: 5,000 m (5,500 yds)
  • Distance to targets (optimal conditions): Animals: 2,775 m (3,000 yds); Trees: 3,600 m (4,000 yds); Retro reflective: 7,000 m (7,500 yds)
  • Laser Locate: ✔
  • Sensor Locate: ✔
  • Onboard mapping: ✔
  • Visual recall: ✔
  • Applied Ballistics Solver: Ultralight, access via AB Quantum app
  • Archery ballistics: ✔
  • Angle compensated distance: ✔
  • Garmin share: ✔
  • Stores locations, tracks and courses: ✔
  • Measures distances between 2 points: ✔
  • Area calculation: ✔
  • Compatible with Garmin Explore App: ✔
  • Carrying case: yes (included)
  • Laser beam divergence: 0.5 x 0.5 mrad
